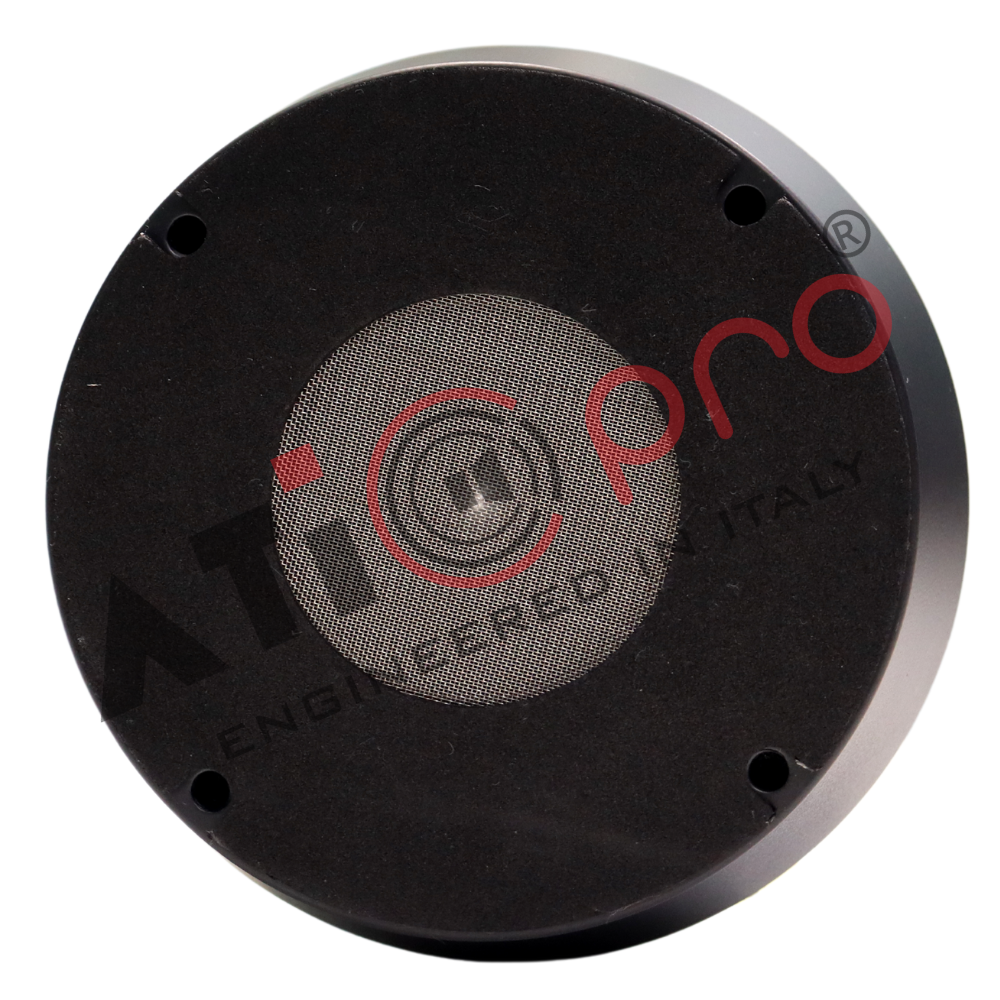

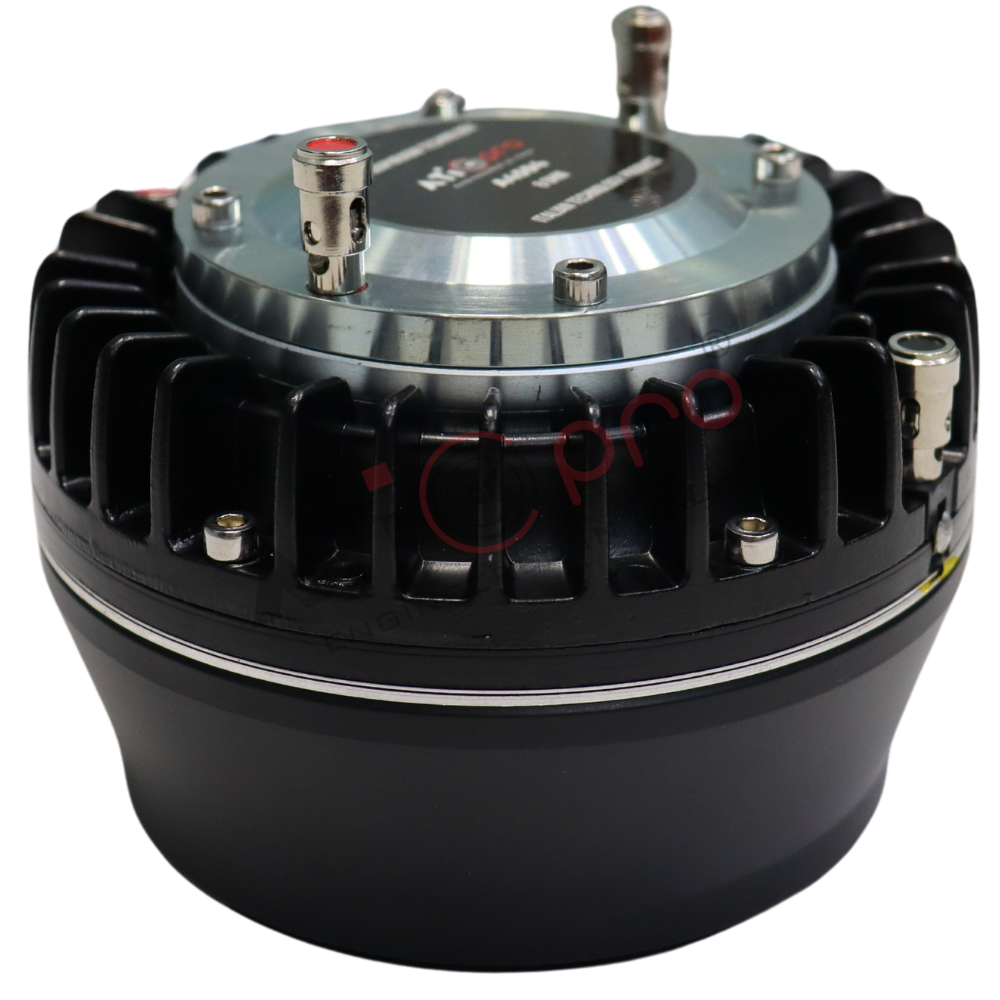

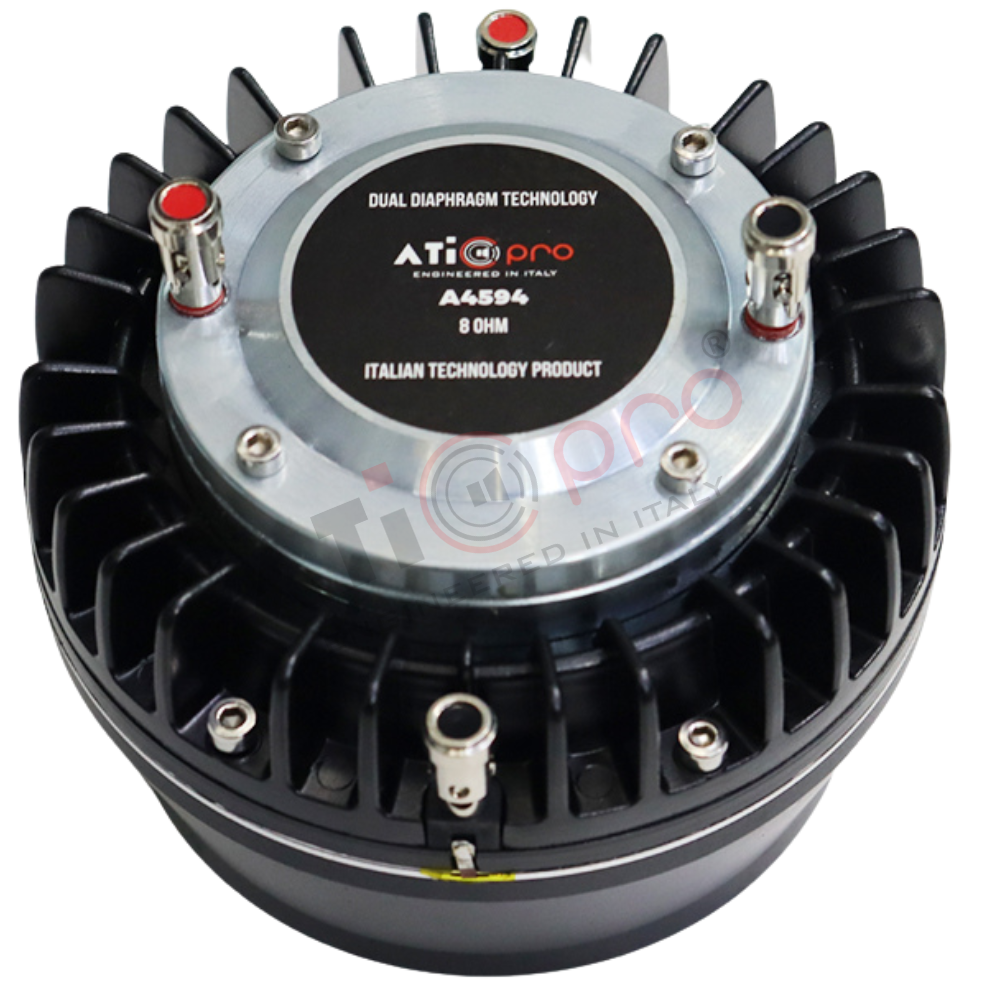

Pressure Mid HF Driver Model A4594

Description

The A4594 is a high-performance speaker driver with the following key features:

• Throat: 2 inches, ensuring optimal sound transmission and enhanced performance.
• Nominal Impedance: 8 Ohms, making it compatible with a wide range of audio systems.
• Sensitivity: 110 dB, offering exceptional sound output for superior audio clarity.
• Frequency Range: 300 Hz to 20 kHz, providing a broad range of sound frequencies for full-range audio reproduction.
• Middle Range (AES): 150 Watts, delivering ample power handling capacity for mid-frequency sounds.
• High Range (AES): 80 Watts, ensuring clear and crisp high-frequency output.
• Middle Frequency Range: 300 Hz to 7 kHz, covering the essential mid-range frequencies for rich, balanced sound.
• High-Frequency Range: 5000 Hz to 20 kHz, offering precise and detailed high-frequency reproduction.
• Voice Coil Diameter: 3.5/1.75 inches, designed for efficient energy conversion and optimal sound quality.
• Voice Coil Material: CCAW (Copper-Clad Aluminum Wire), is known for its excellent conductivity and lightweight design.
• Voice Coil Former: Kapton, providing high thermal stability and improved power handling.
• Diaphragm Material: PEN (Polyethylene Naphthalate), ensuring durability and resilience to wear while maintaining sound clarity.
• Magnet Type: Neodymium, offering high magnetic strength for superior sound performance in a compact form factor.
