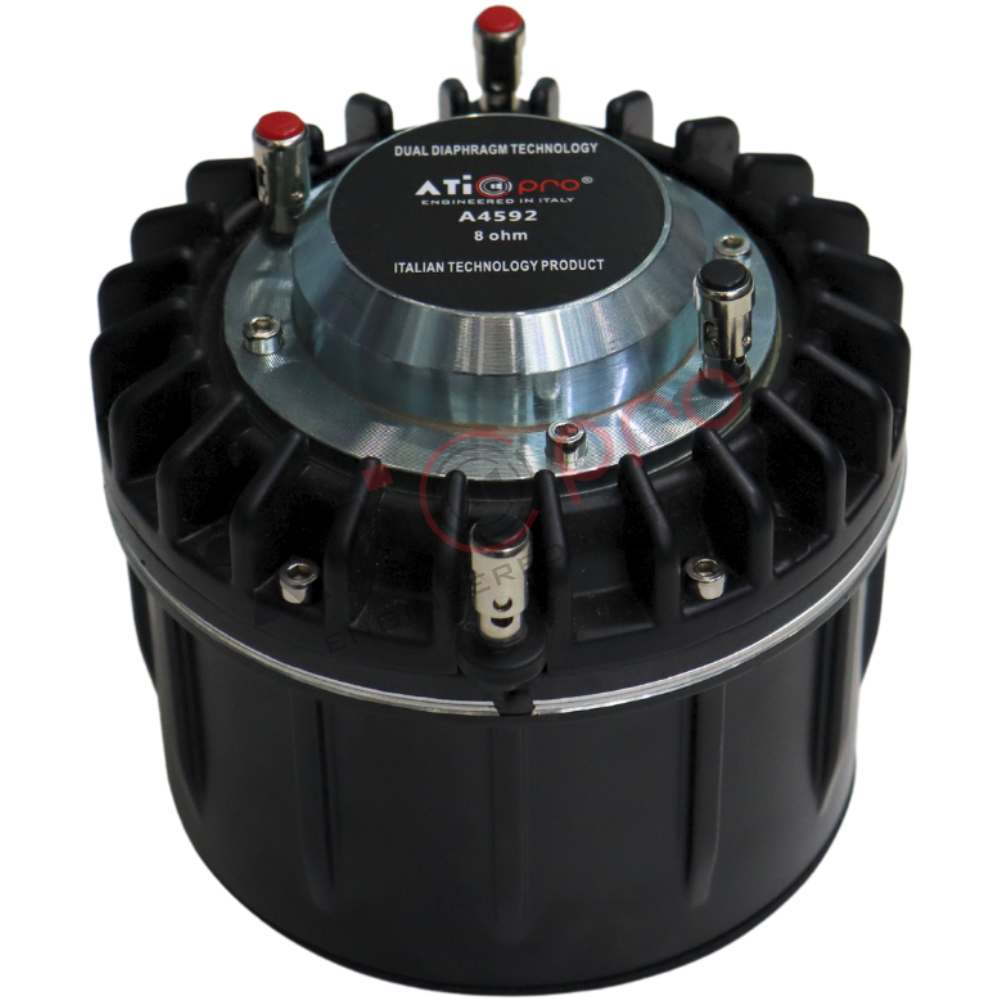

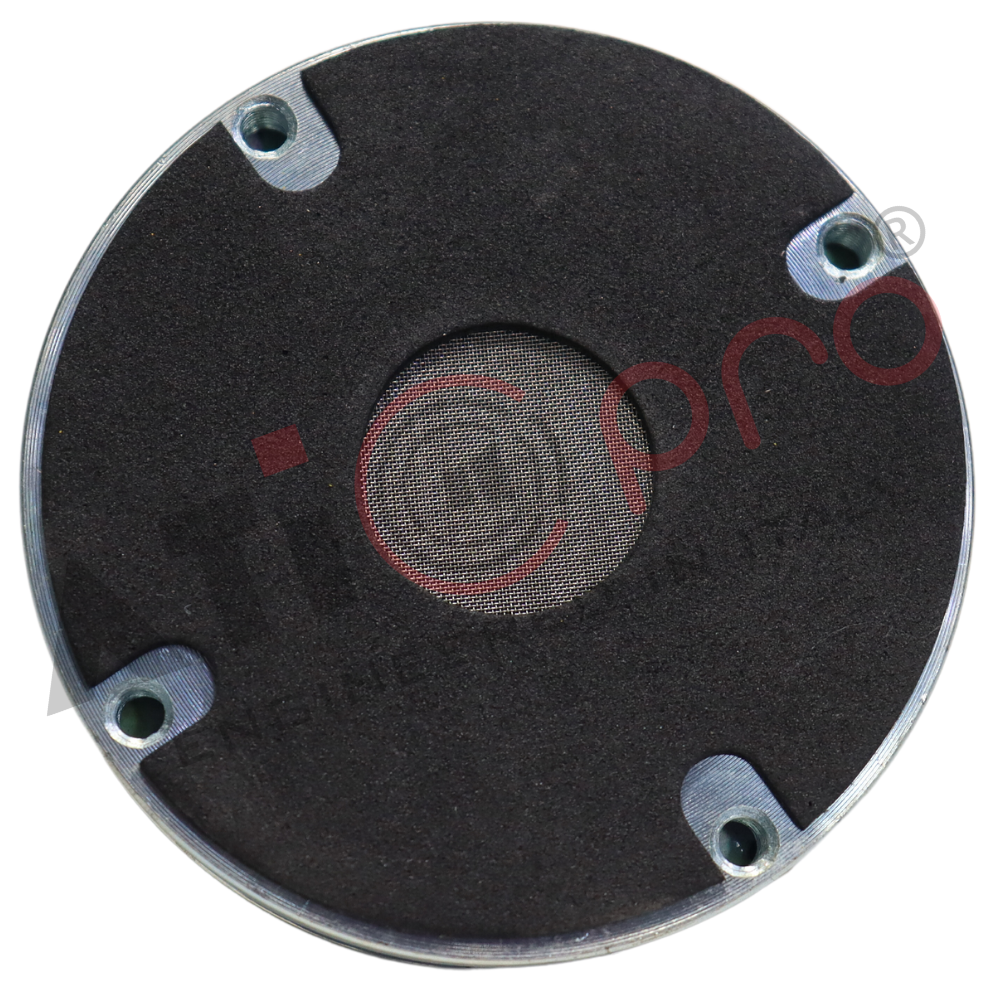

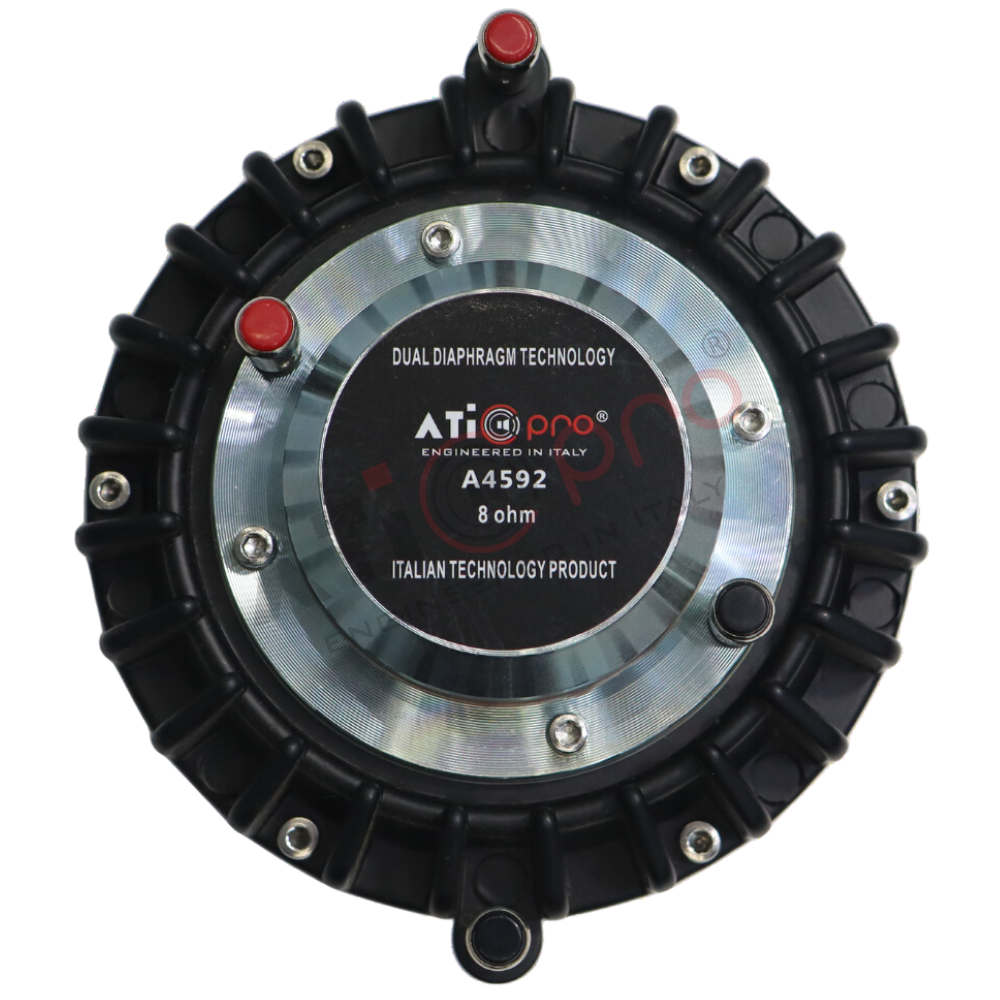

Pressure Mid HF Driver Model A4592

Description

The Pressure Mid HF Driver Model A4592 is a high-performance component designed for superior sound quality.

• Throat: It features a 2-inch throat, optimizing sound dispersion and clarity.
• Nominal Impedance: With an 8-ohm impedance, it ensures compatibility with a wide range of audio systems.
• Sensitivity: Offering a sensitivity of 118 dB, it provides powerful output for demanding applications.
• Frequency Range: This driver delivers a wide frequency range from 300 Hz to 20 kHz, capturing both middle and high frequencies with precision.
• Middle Range (AES): The middle-frequency range is rated at 150 Watts (AES), making it ideal for medium-level sound reproduction.
• High Range (AES): The high-frequency range is rated at 80 Watts (AES), producing clear and crisp high-end sound.
• Middle-Frequency Range: The middle-frequency range extends from 300 Hz to 7 kHz, offering smooth and balanced midrange performance.
• High Frequency Range: The high-frequency range spans from 500 Hz to 20 kHz, delivering sharp and detailed treble.
• Voice Coil Diameter: The voice coil features a diameter of 3.5 inches for the low end and 1.75 inches for the high end, contributing to its efficient operation.
• Voice Coil Material: Constructed with Copper-Clad Aluminum Wire (CCAW) in and out, the voice coil ensures high conductivity and low distortion.
• Voice Coil Former: The voice coil former is made of Kapton, which provides thermal stability and durability under high power conditions.
• Diaphragm Material: The diaphragm is made of polyester, providing flexibility and accuracy for high-frequency sound reproduction.
• Magnet Type: The A4592 utilizes a neodymium magnet, offering strong magnetic flux for enhanced performance in compact sizes.
