Description

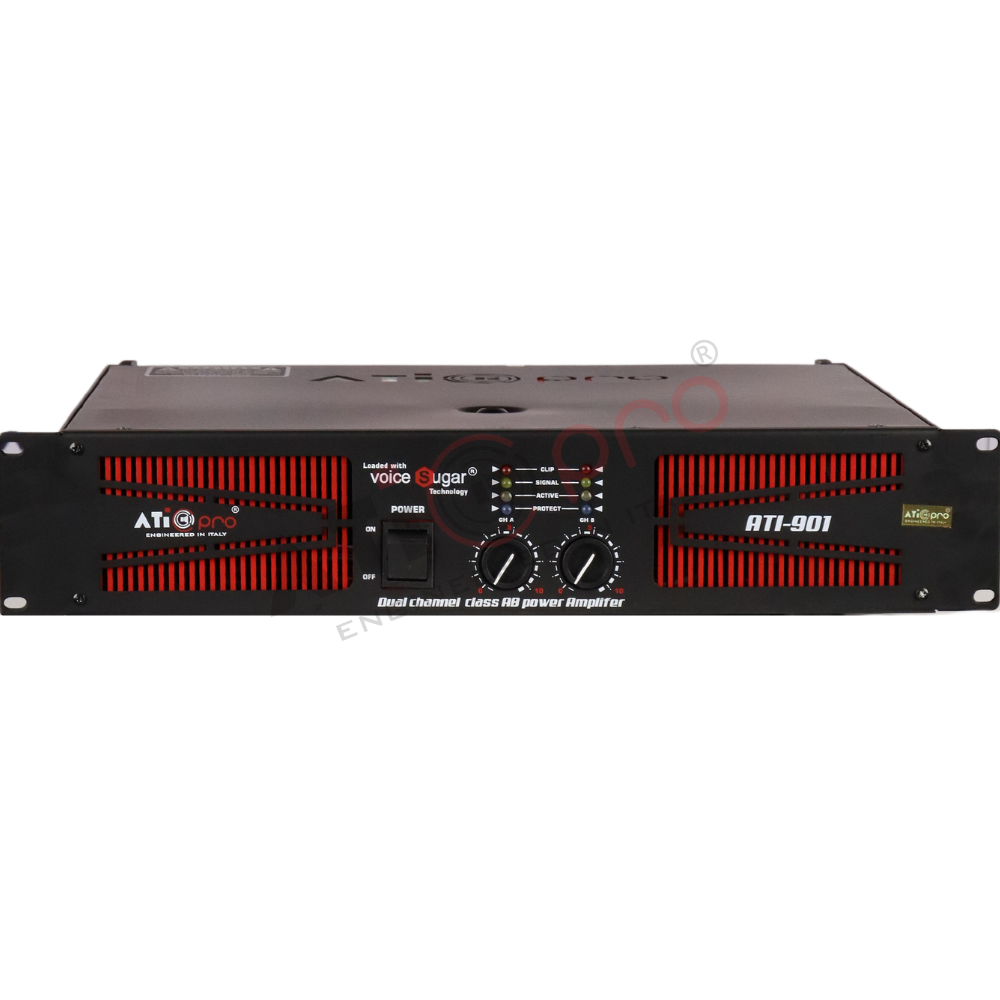

ATI-901 PA Amplifier:
- Power Output (4 Ohms, EIA 1kHz, 1% THD): The ATI-901 delivers a robust 900W of power at 4 Ohms with a 1% total harmonic distortion (THD) at 1kHz.
- Power Output (8 Ohms, EIA 1kHz, 1% THD): At 8 Ohms, the amplifier provides 600W of clean power at 1kHz and 1% THD.
- Bridged Power Output (8 Ohms): In bridged mode, the ATI-901 produces an impressive 1800W at 8 Ohms.
- Distortion (SMPTE-1M): The amplifier maintains ultra-low distortion, with a value of less than 0.1%, ensuring clear and pristine audio performance.
- Signal-to-Noise Ratio (S/N Ratio): With a signal-to-noise ratio of over 95dB, the ATI-901 ensures exceptional sound clarity with minimal background noise.
- Damping Factor: The ATI-901 features a damping factor greater than 450, providing tight control over speaker movements and superior bass performance.
- Amplifier Class: This model operates in Class AB mode, combining efficiency with high-quality sound reproduction.
- EIA Rack Space: The ATI-901 occupies 2U of rack space, making it a compact yet powerful solution for professional audio setups.
- Dimensions: The amplifier has a size of 482mm (W) x 88mm (H) x 360mm (D), making it suitable for standard rack installations.
- Weight: Weighing in at 23kg, the ATI-901 strikes a balance between durability and portability, ideal for live events and installations.
