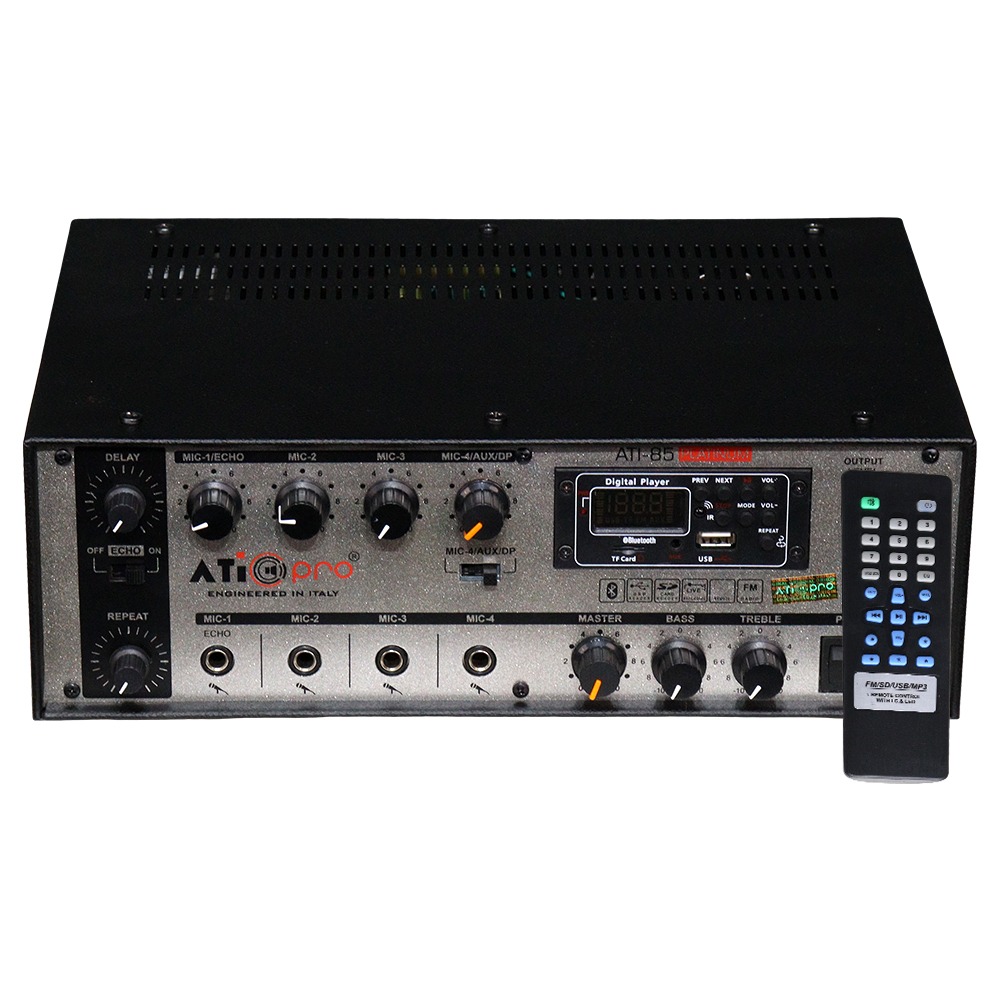

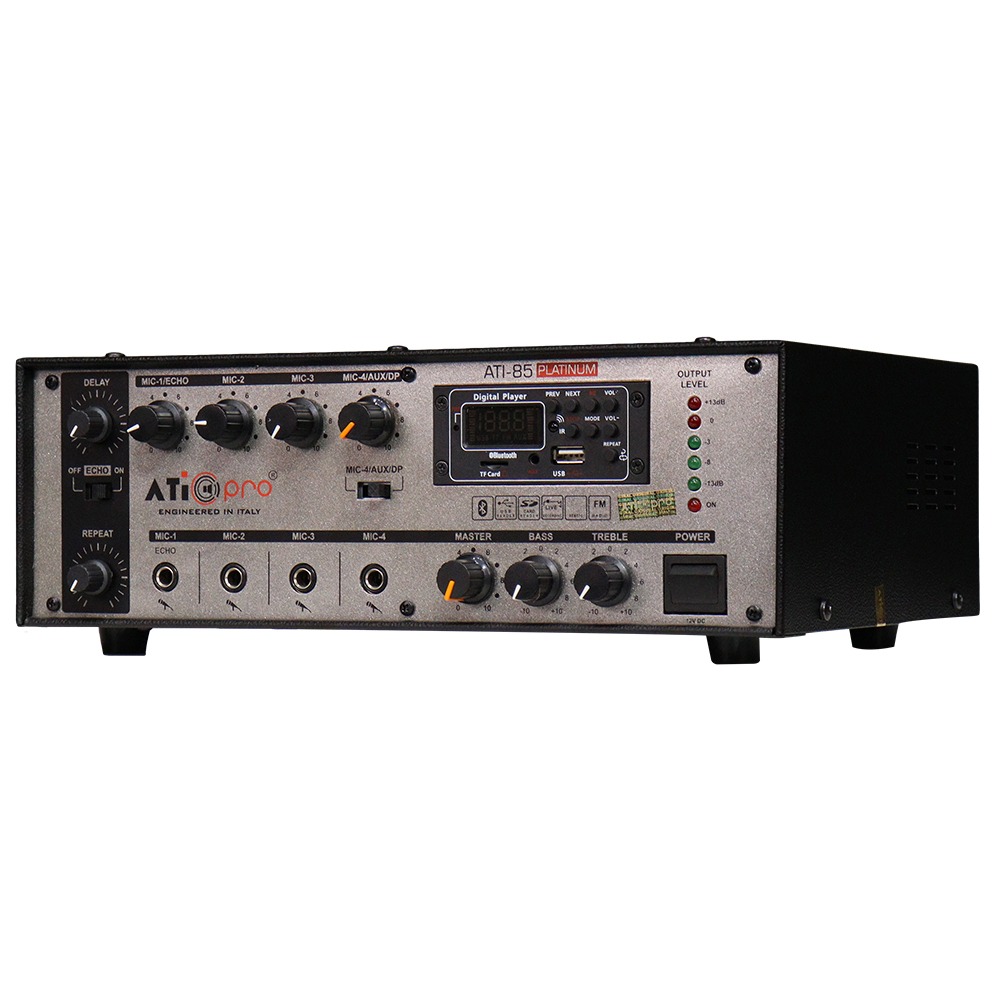

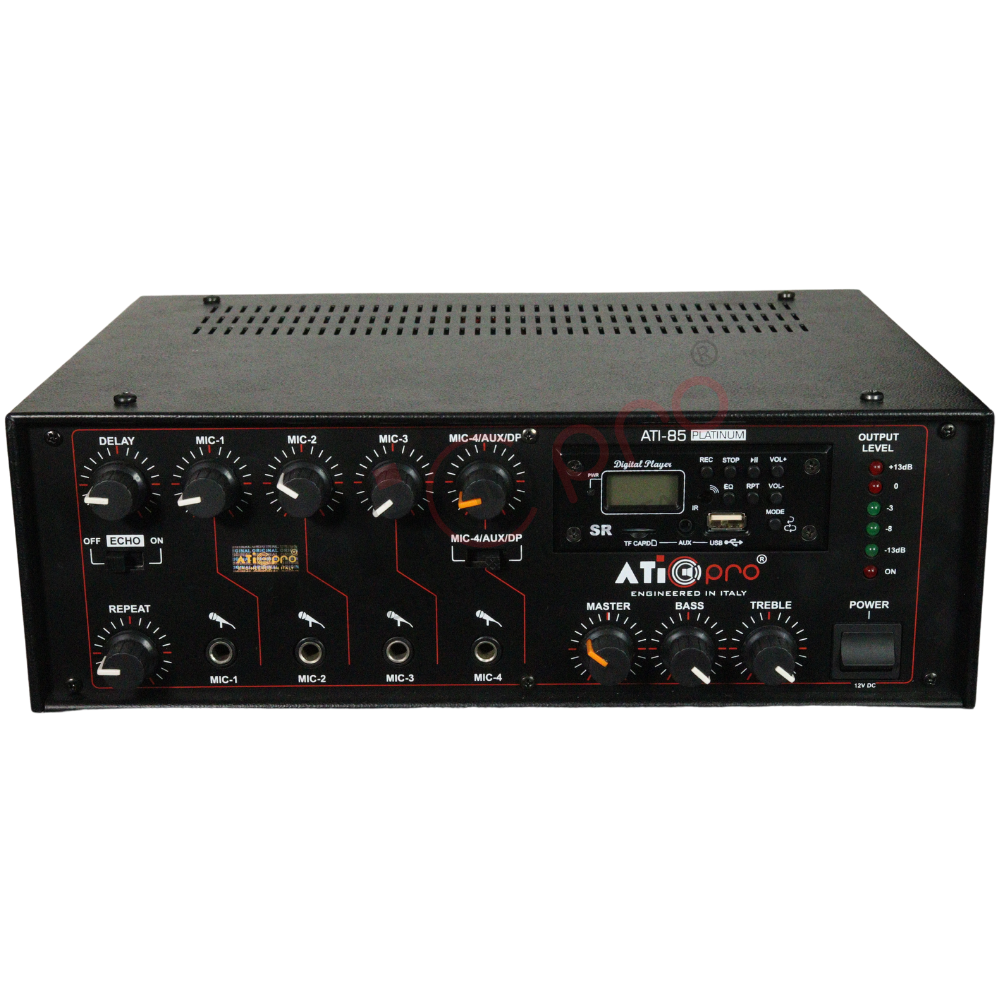

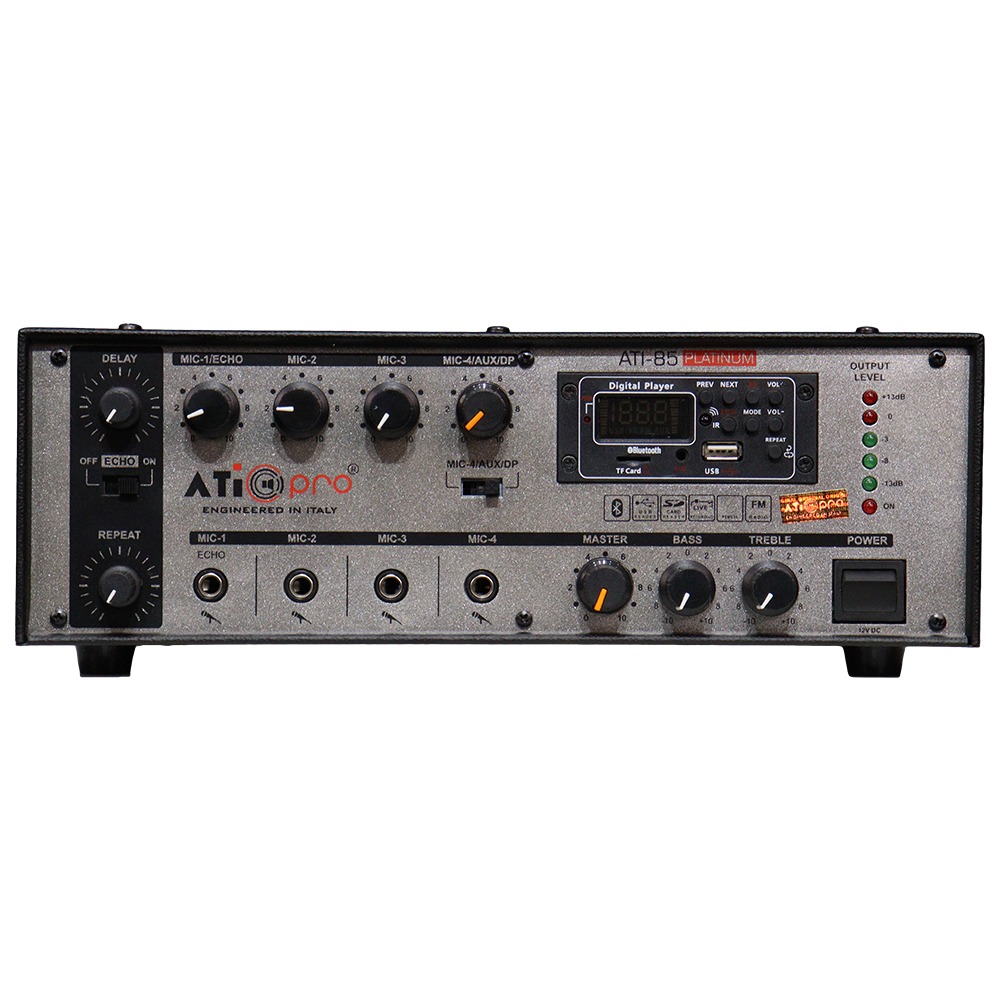

PA Amplifier 85 Watt Model ATI-85

Description

ATI-85 PA Amplifier:

• Model: The ATI-85 is a high-quality PA amplifier designed to deliver reliable performance in various sound systems.
• Power Output: The amplifier provides a maximum power output of 85 watts, ensuring sufficient volume for medium-sized venues or events.
• Output Regulation: The output regulation is ≤ 2 dB from no load to full load at 1 kHz, maintaining consistent sound quality across various speaker configurations.
• Input Channel: It features 4 microphone inputs with a sensitivity of 0.65mV and a 4.7Ω impedance, ideal for connecting multiple microphones, plus 1 auxiliary input with 100 sensitivity and 470kΩ impedance for other audio devices.
• Frequency Response: The amplifier has a frequency response range of 100 Hz to 15,000 Hz ± 3dB, providing clear and accurate sound reproduction.

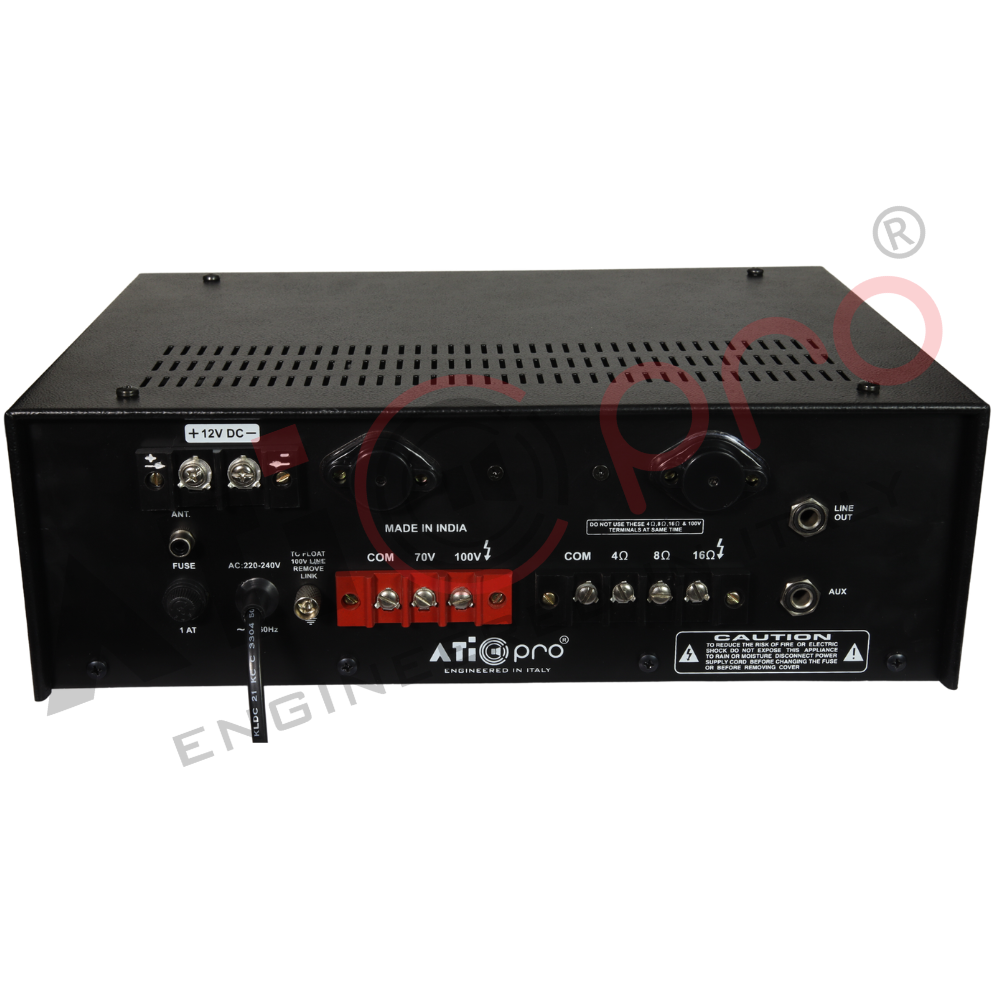

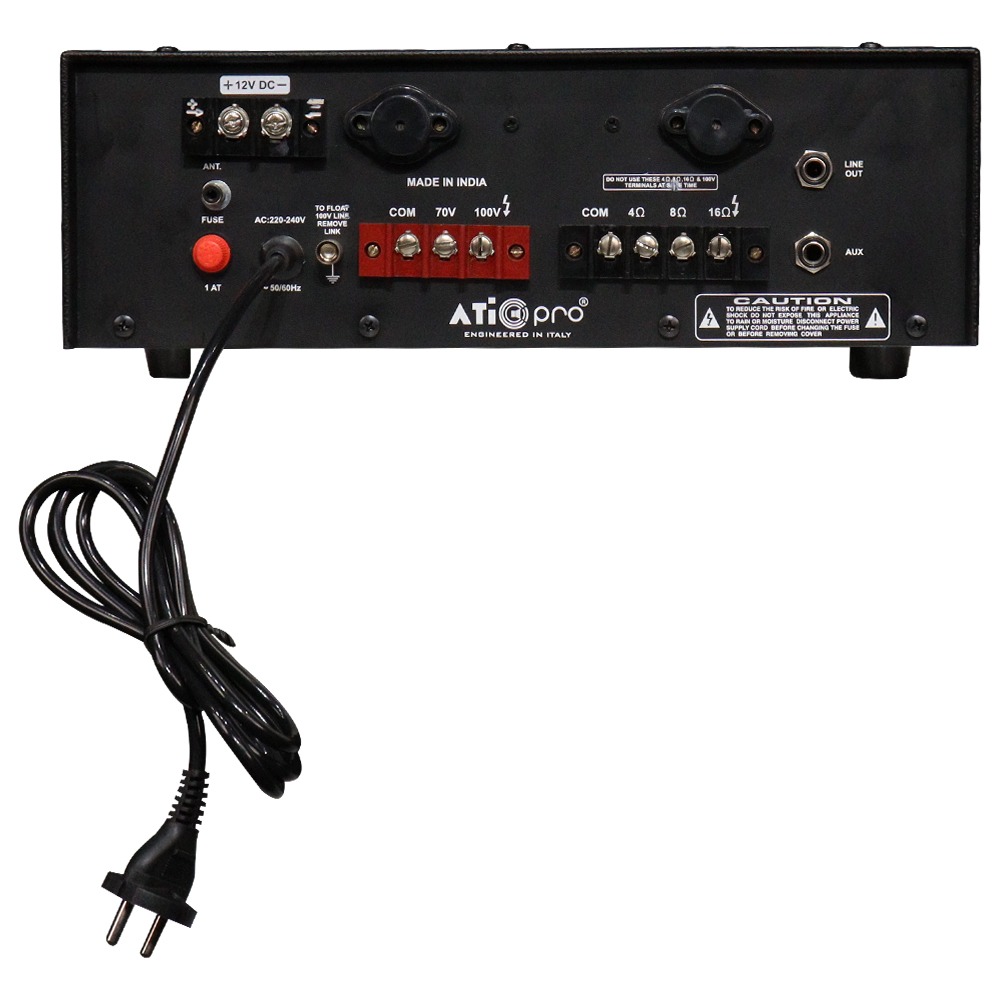

• Speaker Output: The ATI-85 offers speaker outputs for 4Ω, 8Ω, and 16Ω speakers, as well as 70V and 100V systems for versatility in speaker configurations.
• Power Supply: It operates on a power supply of 220/240V AC at 50-60Hz and can also support a 12V DC input for more flexible setups.
• Power Consumption: The amplifier consumes 100 VA of power, ensuring efficient energy use while delivering excellent audio performance.
• Weight: With a weight of 8.8kg, the ATI-85 is compact and portable, making it easy to transport and set up for events.
