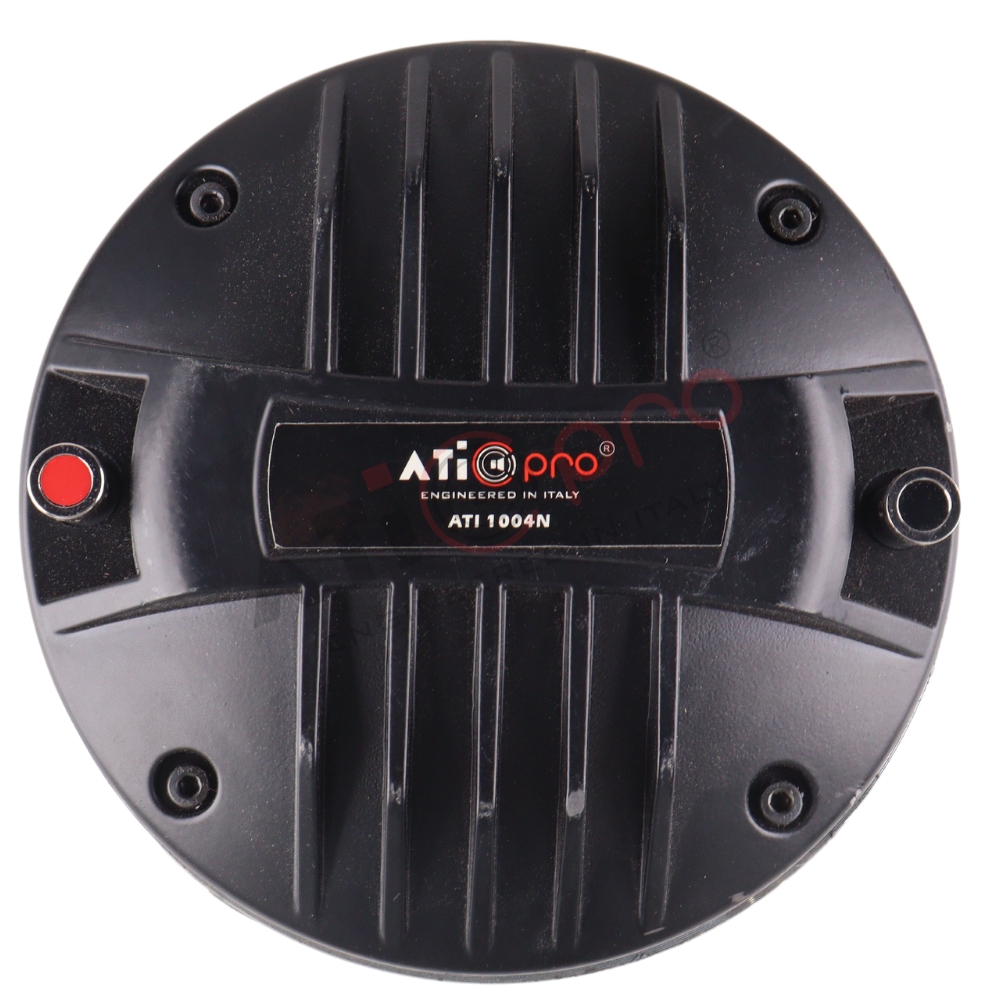

Neodymium Hf Driver Model ATI 1004N

Description

The ATI-1004N Neodymium HF Driver is a high-performance transducer designed to deliver exceptional audio quality and clarity.

• Throat Size: It features a 2-inch throat, providing optimal sound dispersion and output.
• Nominal Impedance: With a nominal impedance of 8 ohms, this driver ensures compatibility with various audio systems.
• Sensitivity: Boasting a high sensitivity of 118dB, the ATI-1004N efficiently converts power into sound, offering strong output even with lower input levels.
• Frequency Range: The driver covers a wide frequency range of 300Hz to 20kHz, ensuring rich and detailed high-frequency response.
• Middle Range (AES): It handles up to 150W in the middle-frequency range, making it well-suited for demanding applications.
• High Range (AES): With an impressive high-range rating of 80W, the ATI-1004N excels in delivering piercing highs with minimal distortion.
• Middle-Frequency Range: The driver operates between 300Hz and 7kHz in the middle frequencies, allowing for smooth transitions and balanced audio.
• High Frequency Range: It effectively covers the high-frequency range from 300Hz to 20kHz, ensuring crisp and clear sound reproduction in the upper spectrum.
• Voice Coil Diameter: The voice coil is 3.5 inches in diameter with a 1.75-inch dual winding, enabling efficient power handling and low distortion.
• Voice Coil Material: Made from copper-clad aluminum Wire (CCAW), the voice coil ensures excellent conductivity and thermal dissipation.
• Voice Coil Former: The voice coil is built on a Kapton former, providing high thermal stability and durability.
• Diaphragm Material: The diaphragm is crafted from polyester, known for its strength and ability to maintain high performance over time.
• Magnet Type: Equipped with a Neodymium magnet, the ATI-1004N offers a powerful magnetic field for high output and efficiency in compact sizes.
