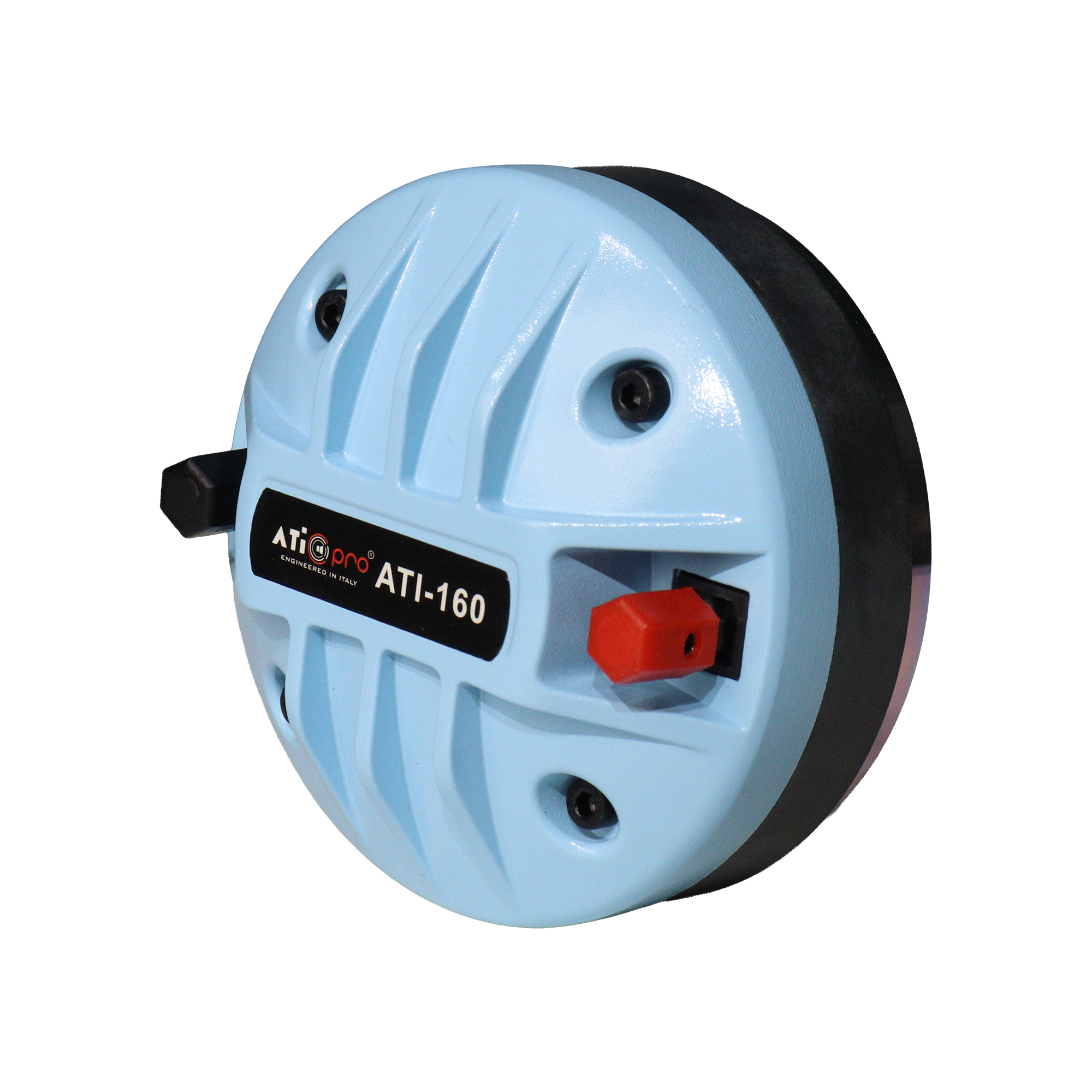

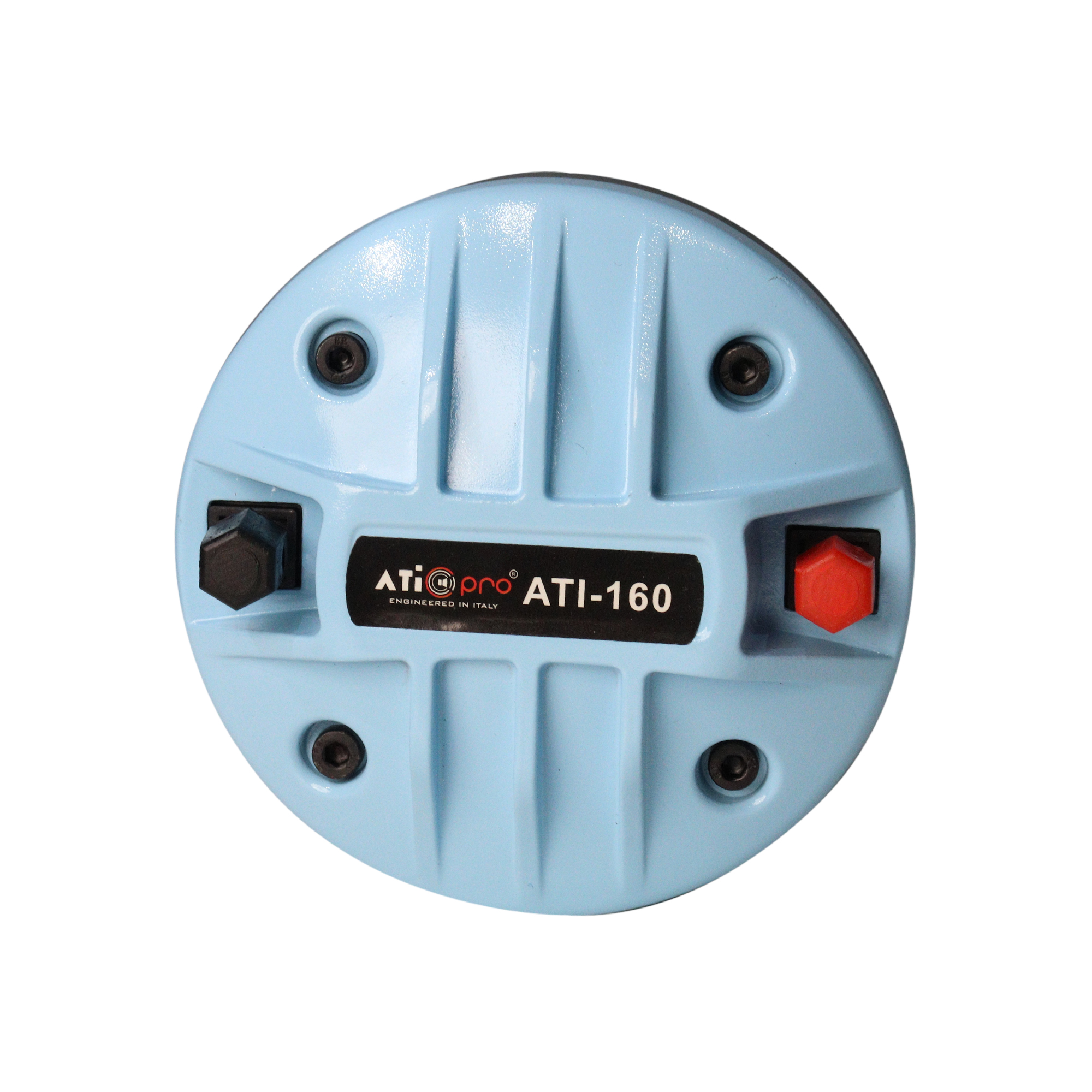

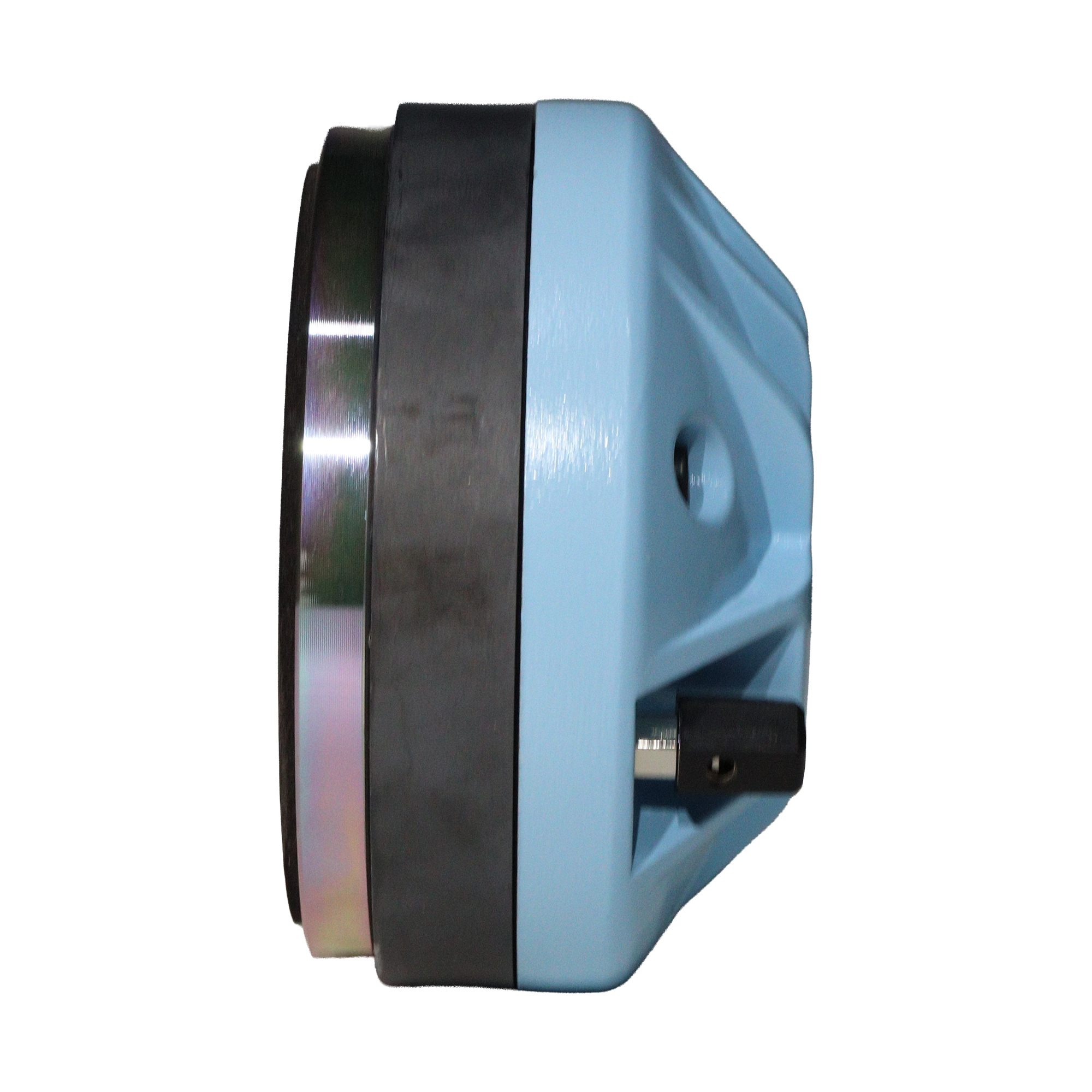

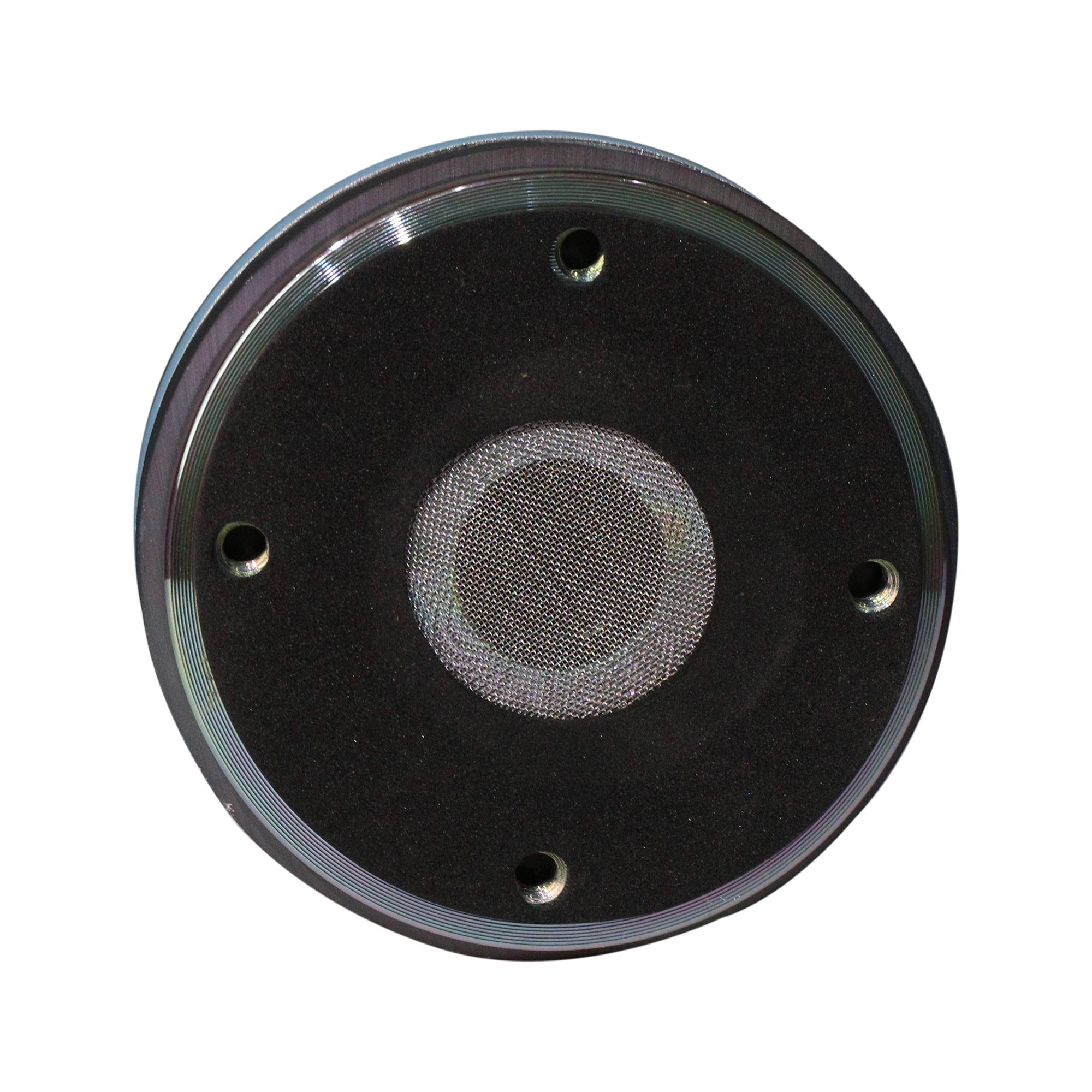

Ferrite HF Driver Model DE160

Description

• Model DE160: The DE160 is a high-performance ferrite HF driver designed for precise and dynamic audio reproduction.
• Throat Size: Featuring a 1-inch throat, it ensures accurate sound dispersion for high-frequency applications.
• Mounting Type: The bolt-on design facilitates easy and secure installation.
• Nominal Impedance: With an impedance of 8 Ohms, it is compatible with a wide range of audio systems.
• Max Power Handling: The driver can handle a maximum power of 100 watts, making it suitable for demanding environments.
• RMS Power Handling: It delivers consistent performance with an RMS power rating of 50 watts.
• Sensitivity: Offering a sensitivity of 110dB at 1W/1m, it ensures excellent sound clarity and projection.
• Usable Frequency Range: Covers an impressive frequency range from 1.0 kHz to 20 kHz, ideal for high-fidelity audio output.
• Recommended Crossover: Designed to perform best with a crossover set at 2.2 kHz or higher, with a slope of 12 dB per octave minimum.
• Voice Coil Diameter: Equipped with a 1.75-inch voice coil for efficient power handling and durability.
• Voice Coil Material: The coil is made from CCAR (copper-clad aluminum Ribbon), ensuring a lightweight yet highly conductive structure.
• Voice Coil Former: The Kapton former provides excellent heat resistance and mechanical stability.
• Flux Density: Boasting a flux density of 1.6T, it delivers powerful magnetic performance.
• Diaphragm Material: The polyester diaphragm ensures a smooth and accurate high-frequency response.
• Magnet Type: Built with strontium ferrite magnets, it offers robust and reliable performance for extended use.
