Description

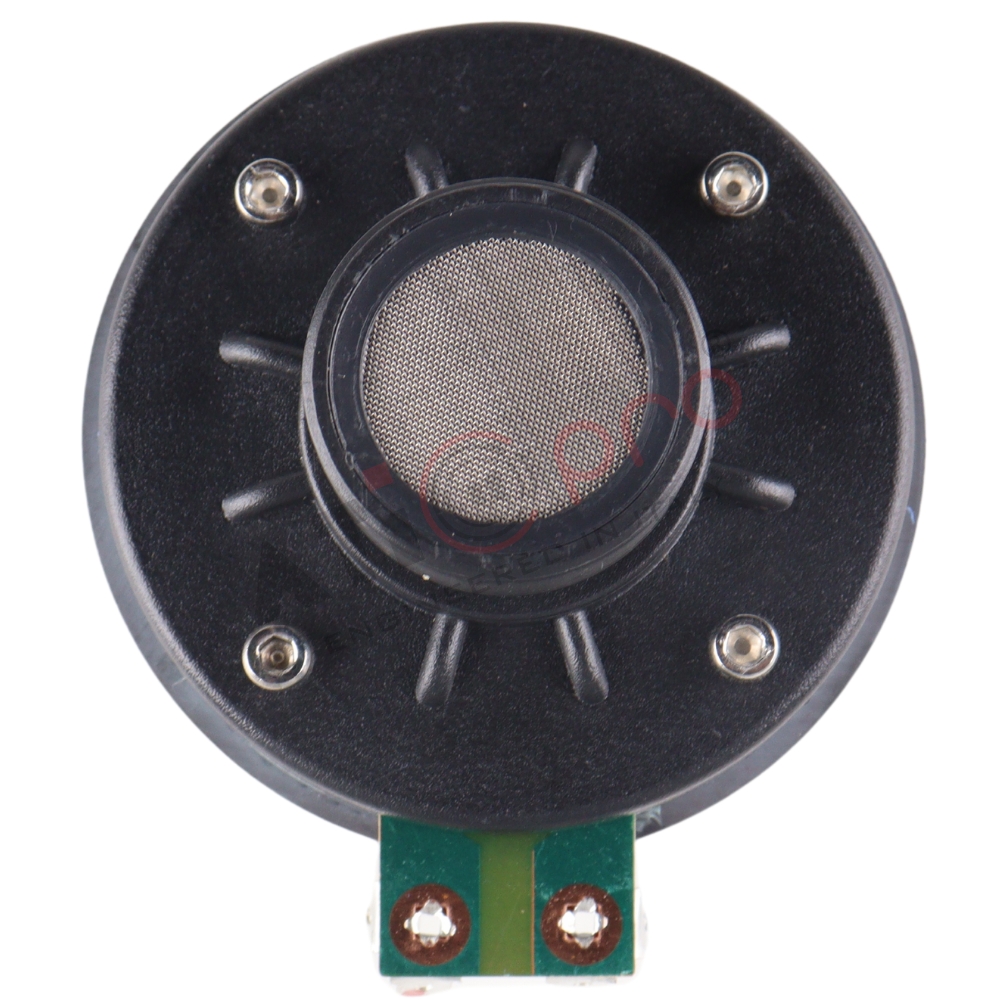

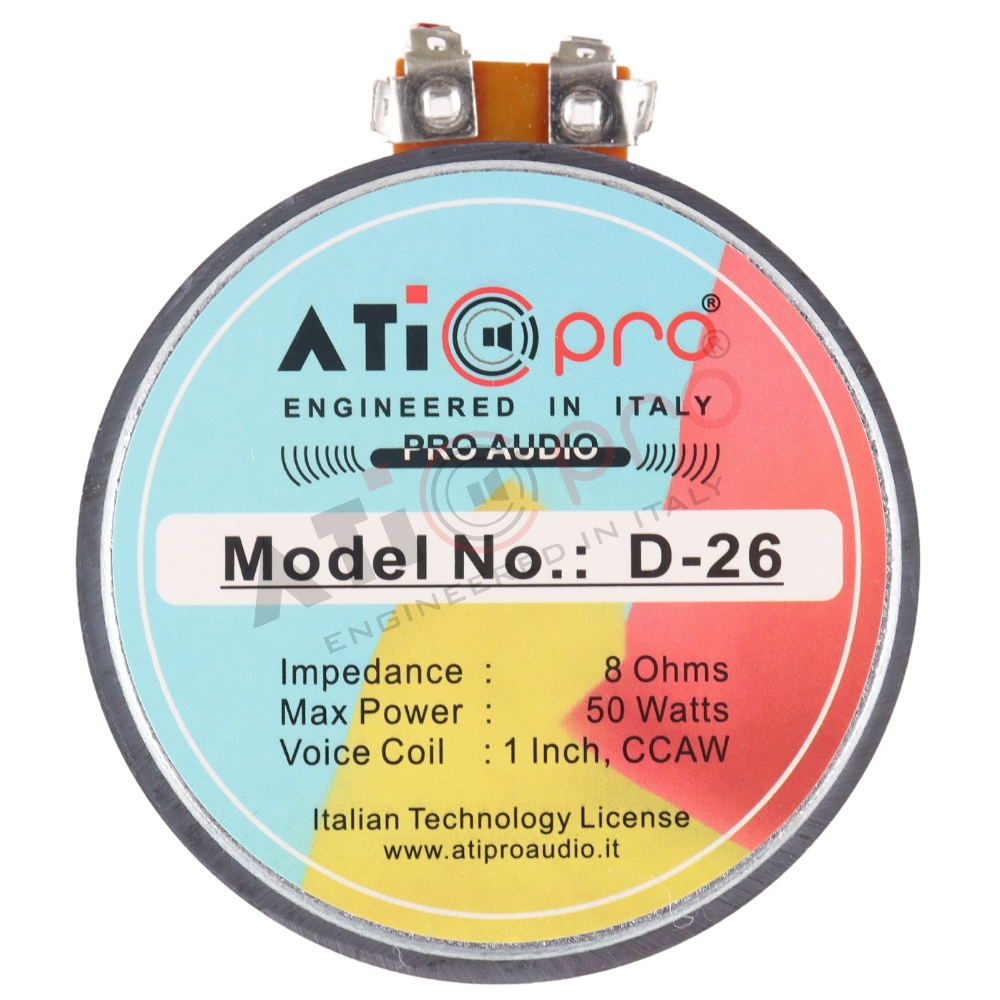

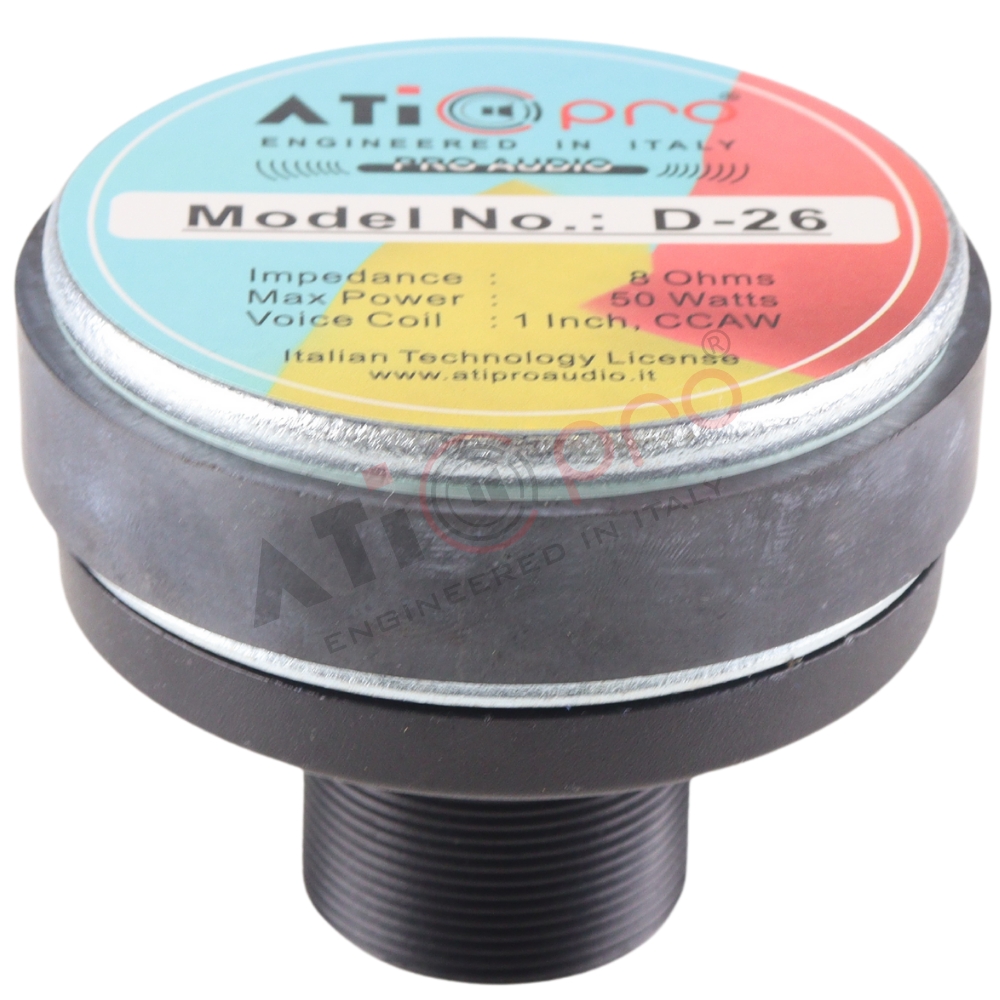

Model: The D-26 HF Driver is designed for premium audio performance in compact and versatile systems.
Throat: With a 1-inch throat size, it ensures accurate sound projection for high-frequency clarity.
Nominal Impedance: The 8-ohm impedance makes it compatible with a variety of audio systems and amplifiers.
Nominal Power Handling: It handles up to 25 watts of power efficiently during regular operation.
Continuous Power Handling: The driver is capable of managing up to 50 watts of continuous power for extended usage.
Sensitivity (1W/1M): With a sensitivity rating of 106 ± 2 dB, it delivers exceptional output even with low input power.
Frequency Range (-10 dB max): Operating across a wide frequency range of 1500 Hz to 20,000 Hz, it ensures detailed and precise high-frequency reproduction.
Voice Coil Diameter: The 1-inch voice coil diameter enhances heat dissipation and performance stability.
Voice Coil Material: Crafted with CCAW (Copper-Clad Aluminum Wire), the voice coil combines lightweight construction with high conductivity.
Voice Coil Former: The Kapton material used for the voice coil former offers superior thermal resistance and durability.
Diaphragm Material: Featuring a blend of titanium and phenolic materials, the diaphragm ensures optimal sound quality with resilience and reliability.
Magnet Type: The Strontium Ferrite magnet provides strong magnetic energy for efficient performance.
Magnet Size: With an 80mm magnet size, the driver is optimized for consistent and powerful sound delivery.
Cover (or Adaptor) Material: The plastic cover ensures a lightweight and robust enclosure, enhancing portability and protection.
