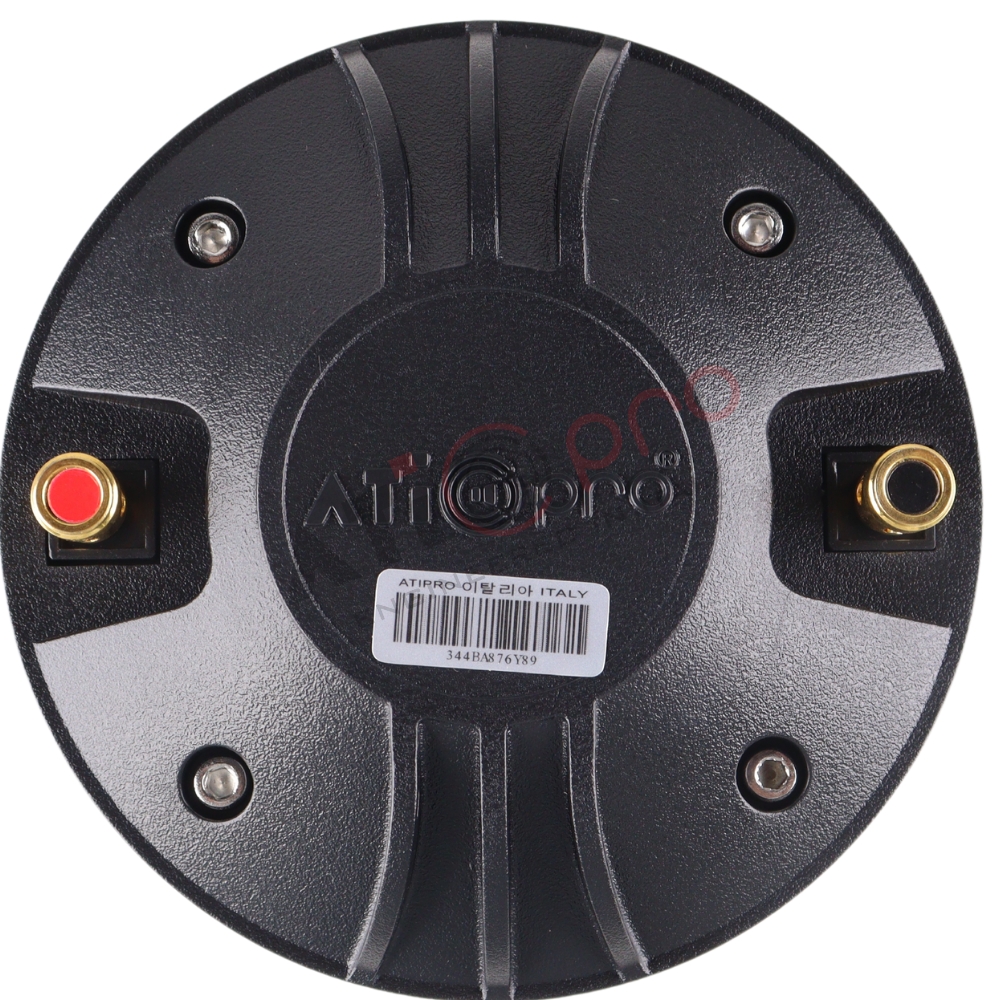

Ferrite HF Driver Model A750

Description

• The Ferrite HF Driver Model A750 features a 2-inch throat, ensuring precise sound projection and clarity.
• With a nominal impedance of 8 Ohms, this driver is compatible with a wide range of audio systems.
• It has a nominal power handling capacity of 110 Watts, providing robust performance.
• The continuous power handling is rated at 220 Watts, delivering consistent and reliable output.
• Offering a sensitivity of 106 ± 2 dB, the A750 ensures efficient sound reproduction even at lower power levels.
• The frequency range spans from 600 Hz to 1600 Hz (-10 dB max), making it ideal for mid-to-high frequency applications.
• Equipped with a 3-inch voice coil, the driver enhances durability and sound quality.
• The voice coil is constructed using CCAW (Copper Clad Aluminum Wire), which optimizes performance while minimizing weight.
• The former material is Kapton, known for its heat resistance and stability during high-power operation.
• The diaphragm is made from titanium, offering exceptional sound clarity and longevity.
• Utilizing a strontium ferrite magnet, the A750 provides powerful magnetic strength for optimal audio output.
• The magnet measures 170 mm in size, ensuring robust performance and sound fidelity.
• The cover or adaptor is crafted from aluminum, adding durability and a sleek finish to the driver.
