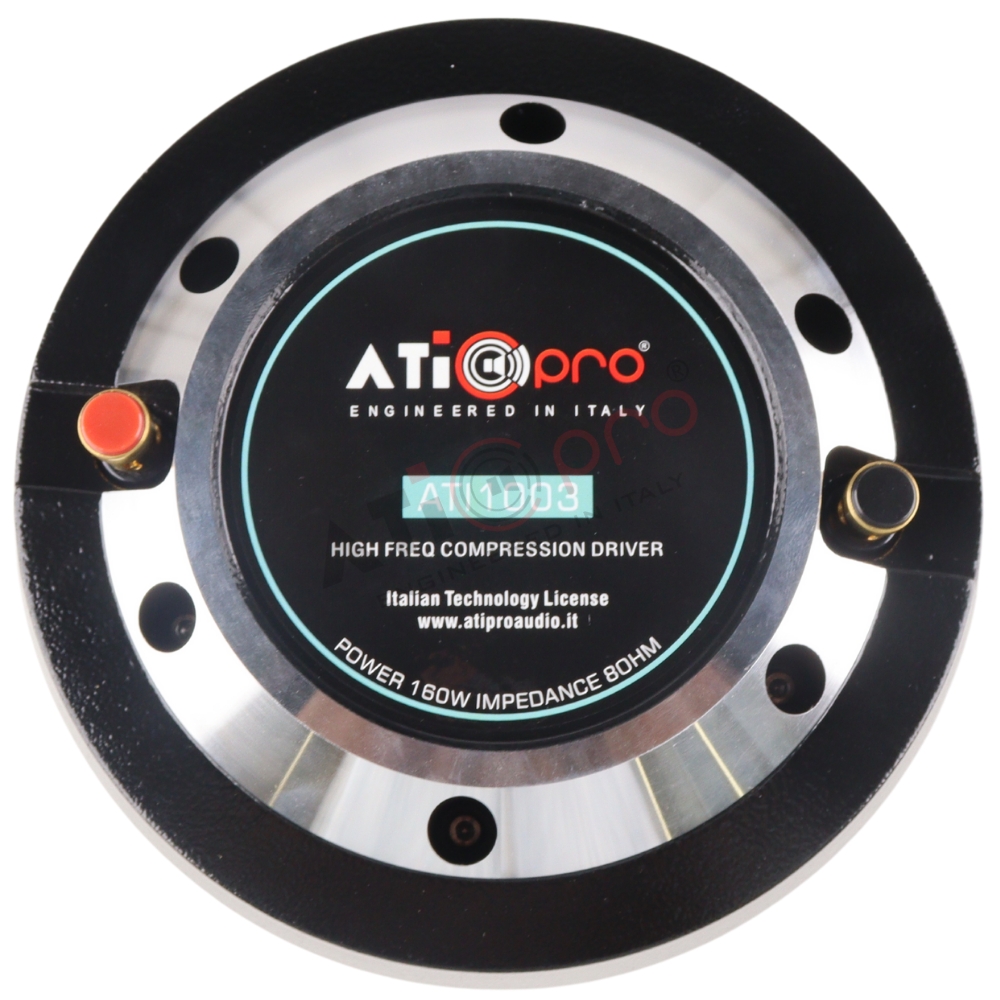

Ferrite HF Driver 160 Watt Model ATI1003

SIZE– 4″ HF

VOICE COIL– KCCAR99.2mm

NOMINAL IMPEDANCE– 8ohms

MAGNET– 200*110*20

FREQUENCY– 500HZ-20KHZ

RMS– 160Watts

Max Power– 320Watts



Share On
Technology
  • Sound Magnet
  • Voice Sugar

Description

The Ferrite HF Driver Model ATI1003 is a high-performance 4″ HF driver designed to deliver exceptional sound quality.

  • Size: The driver features a compact 4″ HF design, ideal for a wide range of professional audio applications.
  • Voice Coil: Equipped with a KCCAR99.2mm voice coil, the ATI1003 ensures efficient power handling and high-frequency response.
  • Nominal Impedance: With a nominal impedance of 8 ohms, the driver is compatible with various audio systems for seamless integration.
  • Magnet: The 20011020 magnet provides a powerful magnetic field, enhancing the overall performance of the driver.
  • Frequency Response: The ATI1003 operates within a frequency range of 500Hz to 20kHz, offering clear and accurate high-frequency reproduction.
  • RMS Power: With an RMS power rating of 160 watts, the driver delivers consistent and reliable performance under regular usage.
  • Max Power: The ATI1003 can handle up to 320 watts of maximum power, ensuring it performs at peak levels in demanding audio environments.

This high-quality ferrite HF driver is engineered to deliver superior sound reproduction, making it an ideal choice for professional audio systems.
