Description

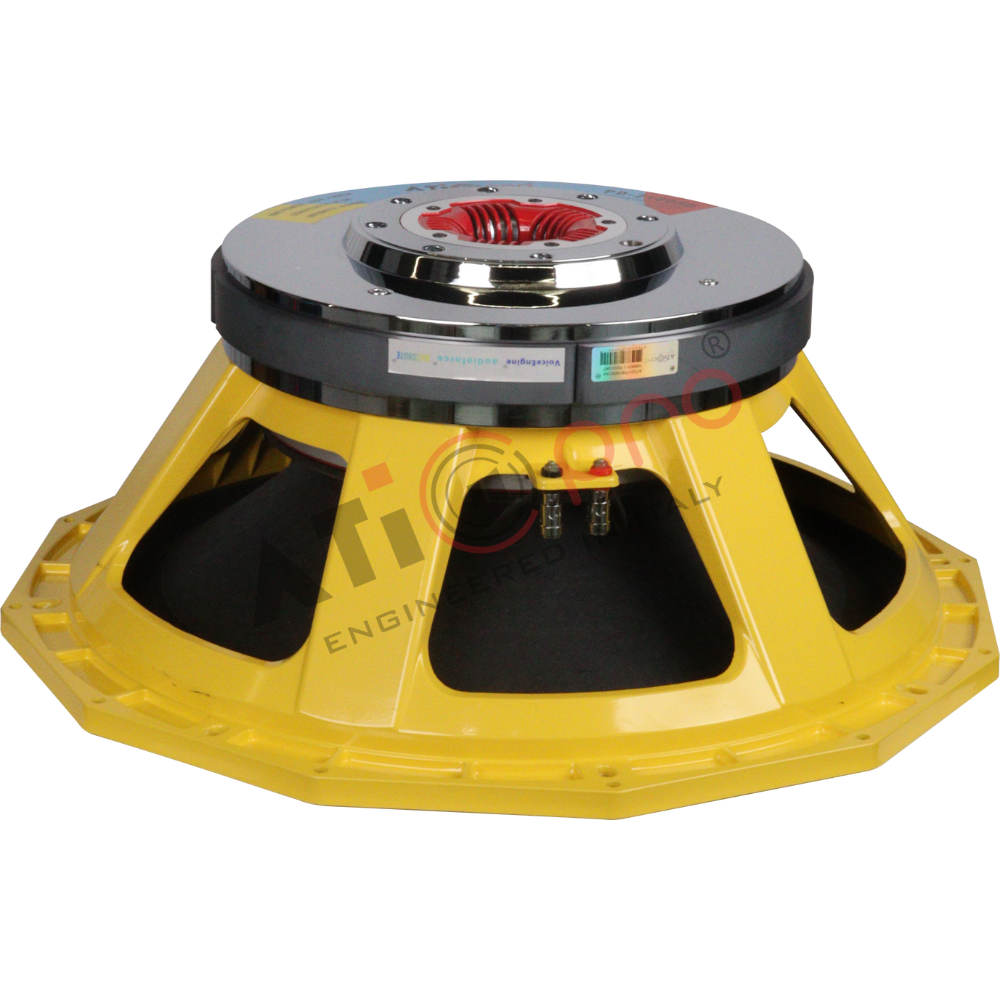

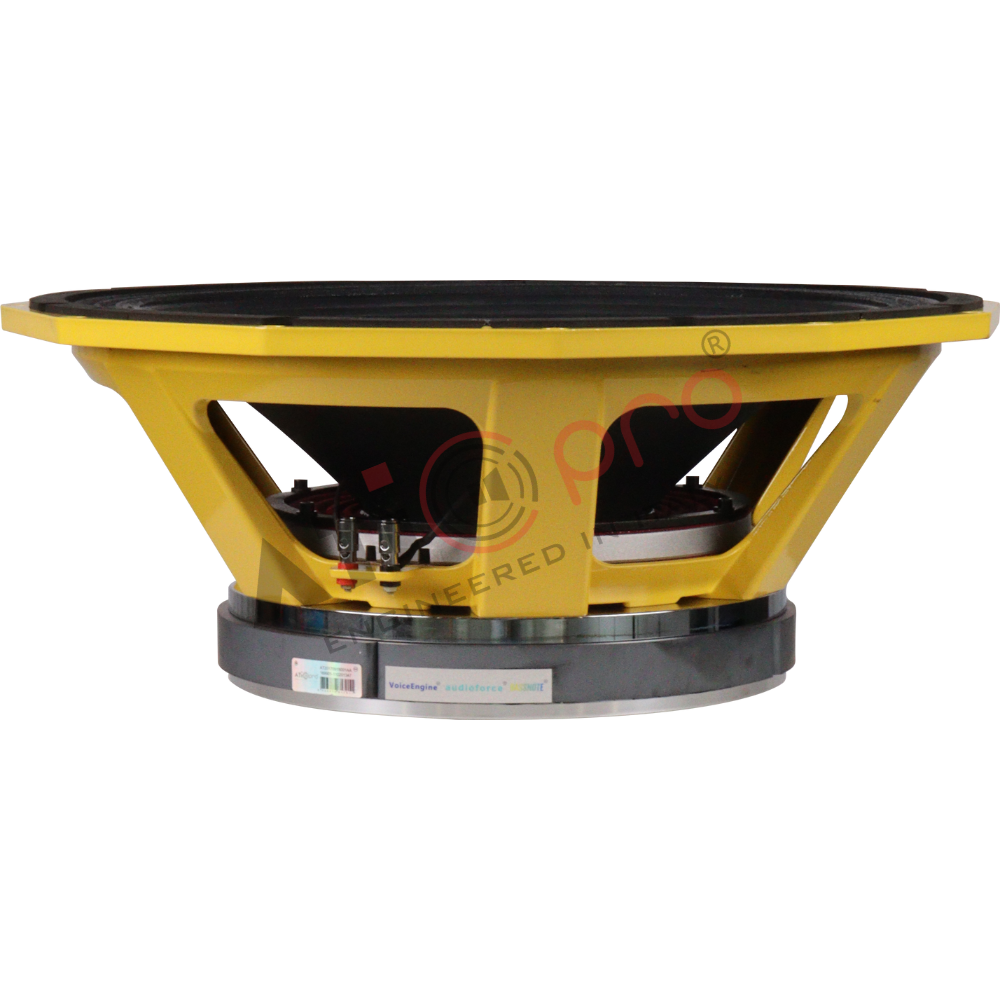

PD2160 HD Speaker
General Specifications:
Nominal Diameter: 554/21 mm/inch
Rated Impedance: 8 Ohm
Program Power : 3000 watts
Power Handling Capacity : 6000 Watts
Sensitivity : 97 dB
Frequency Range: 30-1500 Hz
Magnet Weight : 330x170x30/332 mm/OZ
Minimum Impedance : 5.3 Ohm
Voice Coil Diameter : 152/6 mm/inch
Voice Coil Material : Glass Fiber
Voice Coil Former Material : 35/1.57 mm/inch
Voice Coil Winding Depth : 4
Number of Layers : Inside / Outside
Kind of Layers : 15/0.6 mm/inch
THIELE – SMALL PARAMETERS
Resonance Frequency : FS 30 HZ
DC Resistance : Re 5.3 Ohm
Mechanical Factor : QMs 11.4
Electrical Factor : QEs 0.36
Total Factor : QTs 0.32
BL Factor : BL 35 T.M
Effective Moving Mass : Mms 400 gr
Equivalent CAS air load : Vas 225 liters
Effective piston area : Sd 0.125 m2
Max. linear excursion (mathematical) : X max 10 mm
Half – space efficiency : Eff 1.5 %
SHIPPING INFORMATION
Net Weight : 31.5 Kg
Gross Weight : 35.7 kg
Multiple Size (1pc) : 63X63X32.5 Cm
