Description

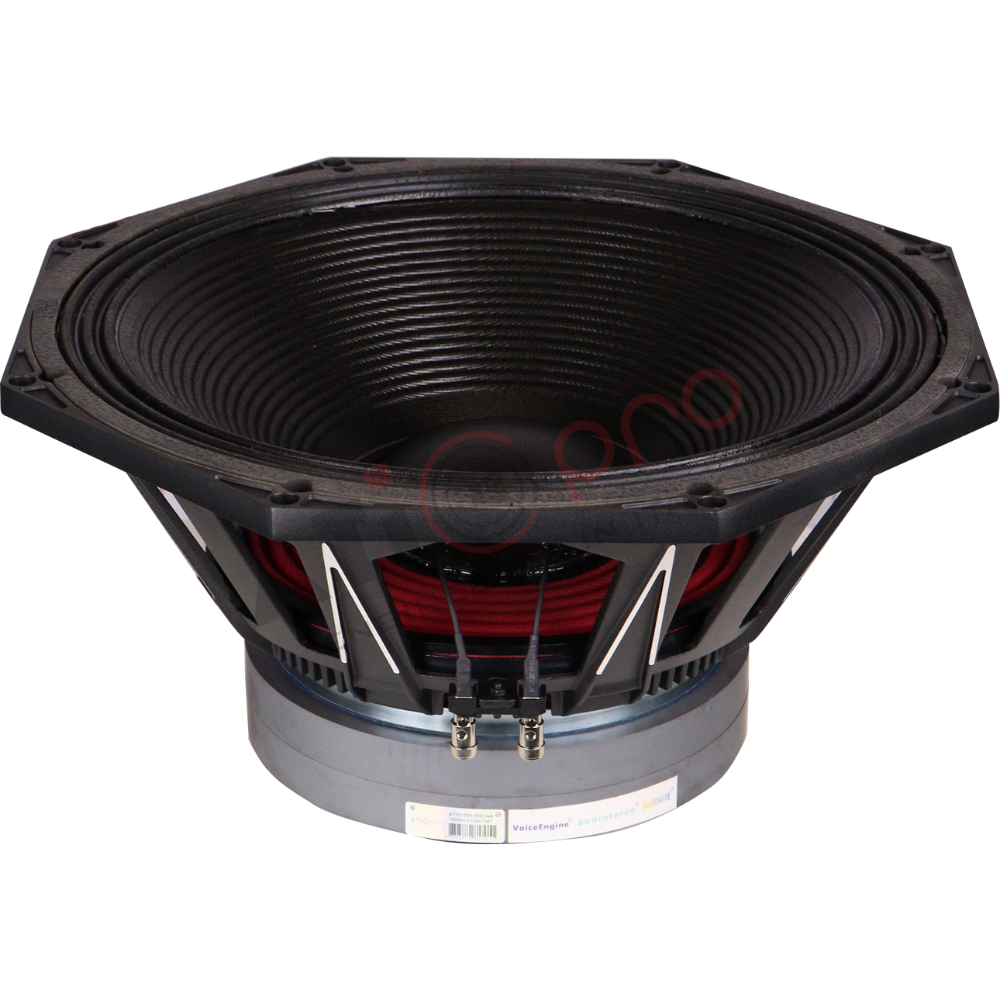

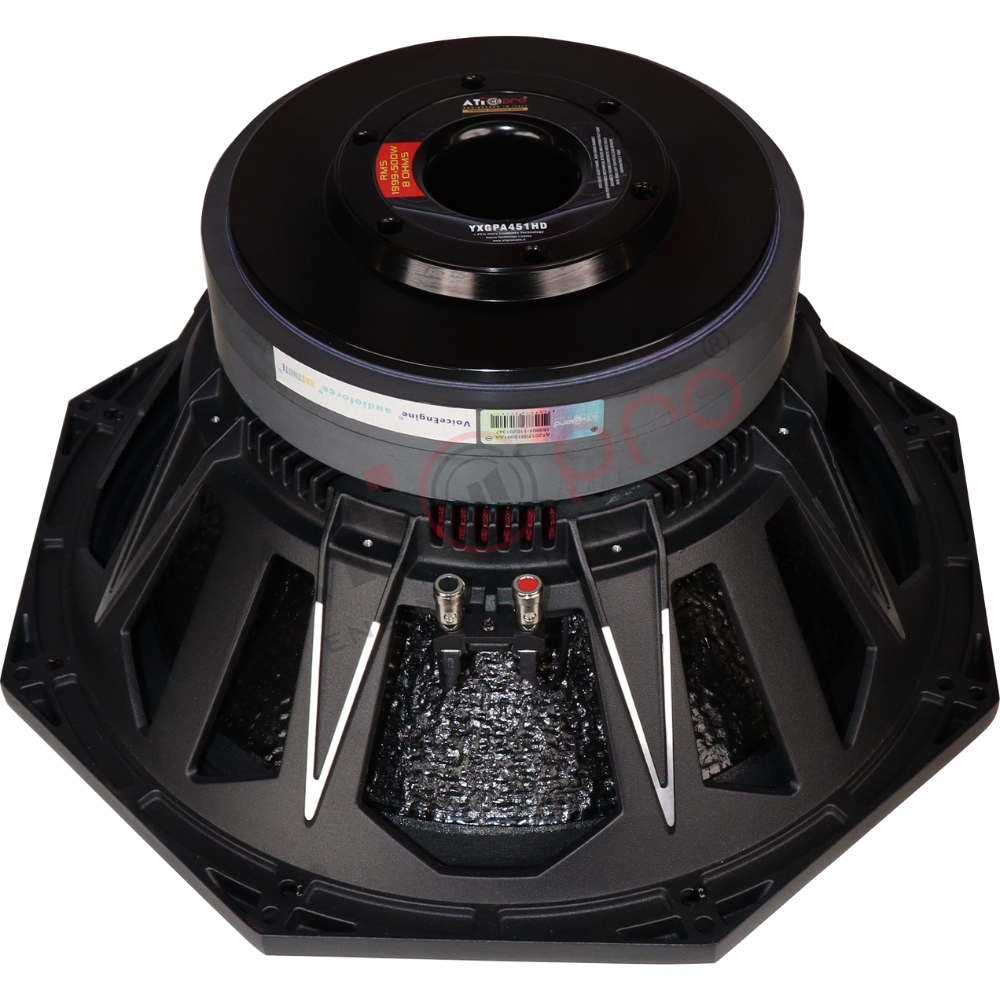

YXGPA451 HD
General Specifications :
Nominal Diameter: 460/18 mm/inch
Rated Impedance: 8 Ohm
Program Power : 1999+500 W
Power Handling Capacity : 5000 Watts
Sensitivity : 95.5 dB
Frequency Range: 30Hz-2.0 KHz
Magnet Weight : 253X140X30 Y35
Minimum Impedance : 5.4 Ohm
Voice Coil : 4.5″ SV In/Out
Voice Coil Material : Glass Fiber
Voice Coil Former Material : 30/1.18 mm/inch
Voice Coil Winding Depth : 4
Number of Layers : Inside / Outside
Kind of Layers : 15/0.6 mm/inch
THIELE – SMALL PARAMETERS
Resonance Frequency : FS 30 HZ
DC Resistance : Re 5.4 Ohm
Mechanical Factor : QMs 8.2
Electrical Factor : QEs 0.43
Total Factor : QTs 0.42
BL Factor : BL 30 T.M
Effective Moving Mass : Mms 205 gr
Equivalent CAS air load : Vas 152 liters
Effective piston area : Sd 0.123 m2
Max. linear excursion (mathematical) : X Max 8 mm
Half – space efficiency : Eff 1.5 %
SHIPPING INFORMATION
Net Weight : 24.4 Kg
Gross Weight : 28.6 kg
Multiple Size (1pc) : 53X53X32 Cm
