Description

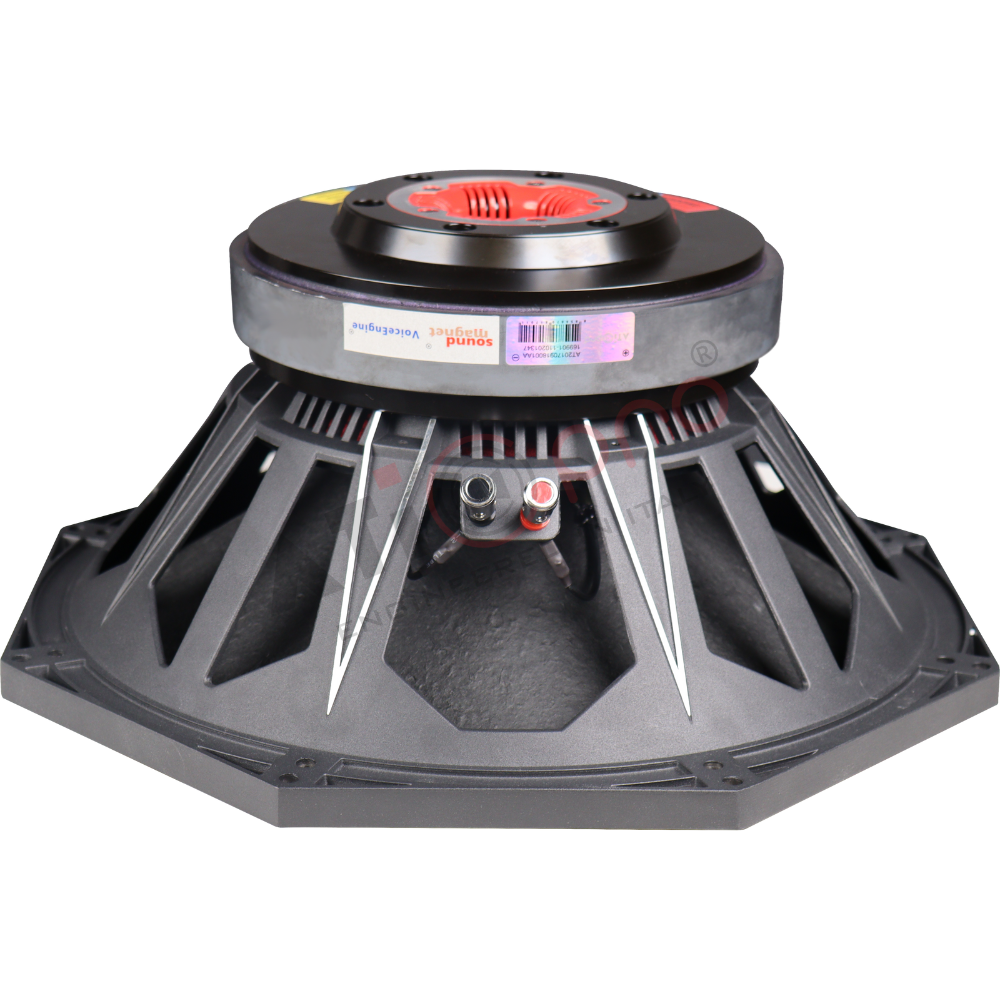

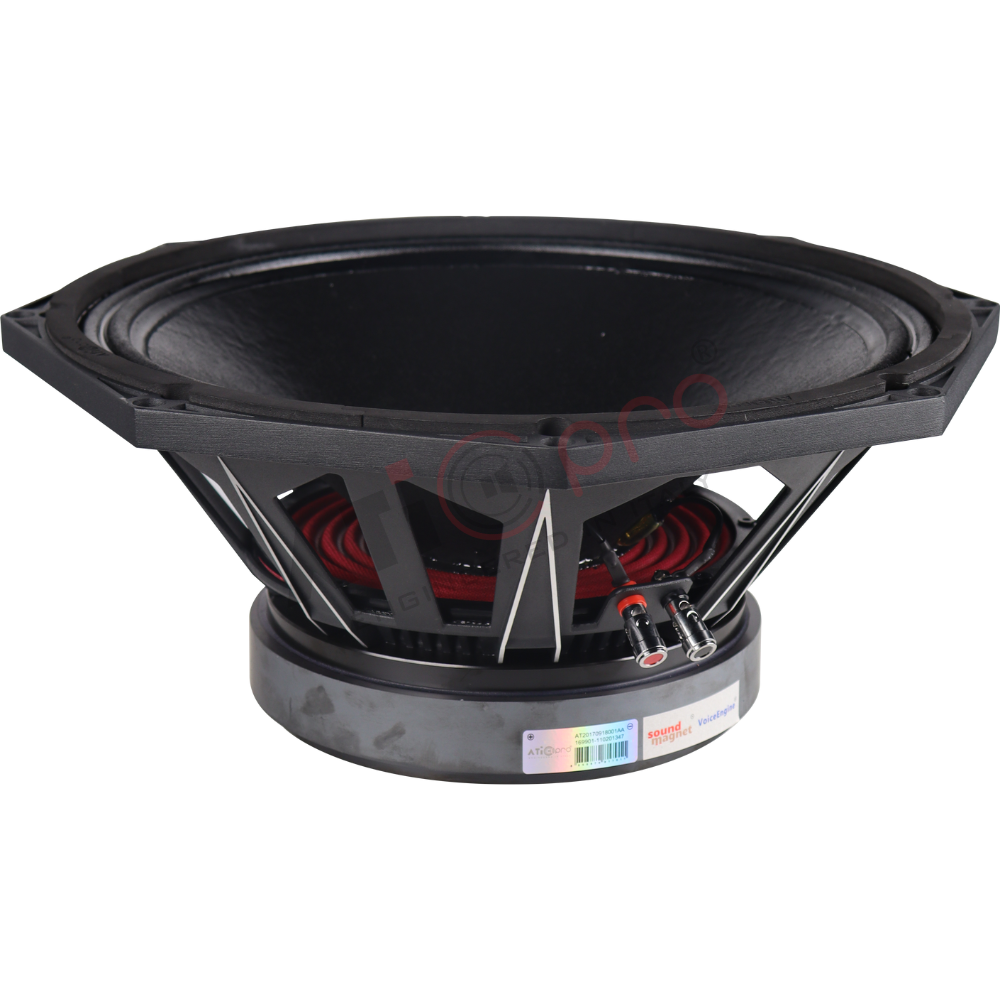

YX15X800 HD Speaker
General Specifications:
Nominal Diameter: 390/15 mm/inch
Rated Impedance: 8 Ohm
Program Power : 1100 watts
Power Handling Capacity : 2200 Watts
Sensitivity : 95 dB
Frequency Range: 40HZ – 3.0KHz
Magnet Weight : 220X110X30/150 mm/OZ
Minimum Impedance : 5.3 Ohm
Voice Coil Diameter : 99.2/4 mm/inch
Voice Coil Material : Glass Fiber
Voice Coil Former Material : 28/1.1 mm/inch
Voice Coil Winding Depth : 4
Number of Layers : Inside / Outside
Kind of Layers : 12/0.47 mm/inch
THIELE-SMALL PARAMETERS
Resonance Frequency : FS 40 HZ
DC Resistance : Re 5.3 Ohm
Mechanical Factor : QMs 5.2
Electrical Factor : QEs 0.47
Total Factor : QTs 0.42
BL Factor : BL 24 T.M
Effective Moving Mass : Mms 120 gr
Equivalent CAS air load : Vas 115 liters
Effective piston area : Sd 0.122 m2
Max. linear excursion (mathematical) : X Max 8 mm
Half – space efficiency : Eff 1.5 %
SHIPPING INFORMATION
Net Weight : 24.8 Kg
Gross Weight : 28.5 kg
Multiple Size (1pc) : 46X46x48 Cm
