Description

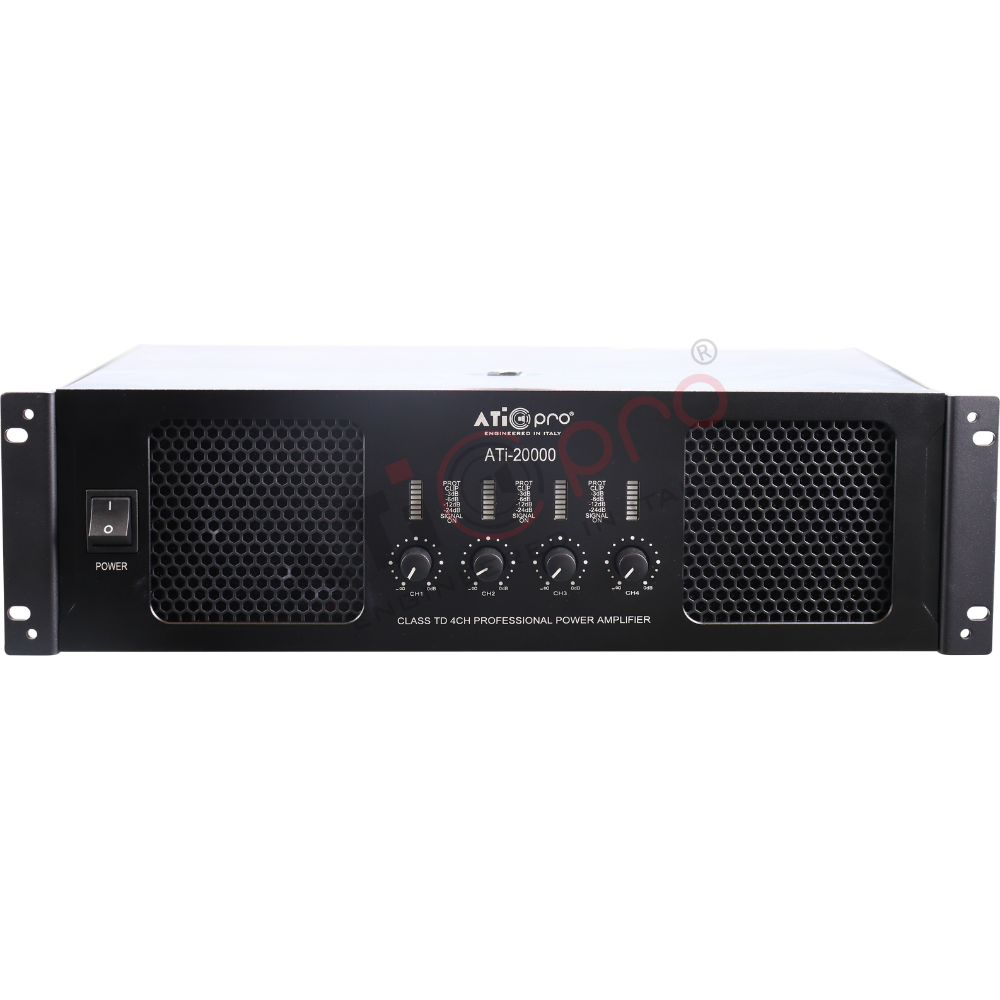

- High Power Output: The ATI 20000 delivers a powerful 10800W with 4x1800W at 8Ω, 4x2700W at 4Ω, and 4x3600W at 2Ω in stereo mode.
- Bridged Mono Power: Provides 2x4600W at 8Ω and 2x6800W at 4Ω in bridge mono mode for enhanced performance.
- Wide Frequency Response: Offers a frequency response range from 20Hz to 20kHz with a minimal ±0.5dB variation for clear and accurate sound reproduction.
- Low Total Harmonic Distortion: THD+N is less than 0.5%, ensuring high-fidelity output even at 1kHz with 1/3 power at 8Ω.
- High Slew Rate: A slew rate of greater than 105V/µs ensures fast response and precise sound dynamics.
- Exceptional Signal-to-Noise Ratio: With a signal-to-noise ratio of 110dB, it ensures minimal interference and clear audio.
- Superior Damping Factor: The damping factor of over 2000 at 8Ω and 1kHz allows for tight and controlled bass performance.
- Multiple Input and Link Connectors: Features 3-pin XLR balanced inputs and XLR 3-pin male link connectors per channel for reliable signal transmission.
- Efficient Output Circuit: Class TD output circuit for improved efficiency and performance.
- High Input Impedance: Input impedance of 20KΩ balanced and 10KΩ unbalanced, ensuring compatibility with various audio sources.
- Robust Protection System: Equipped with multiple protection features, including short circuit, open circuit, overheat, overload, DC, and super sonic frequency safeguards.
- Power Requirement: Operates on a 200-240V, 50-60Hz power supply.
- Durable Build: Compact transport dimensions of 73.7×55.2×23.5 cm and a net weight of 38.5 kg (gross weight: 42 kg) for safe and easy transportation.
