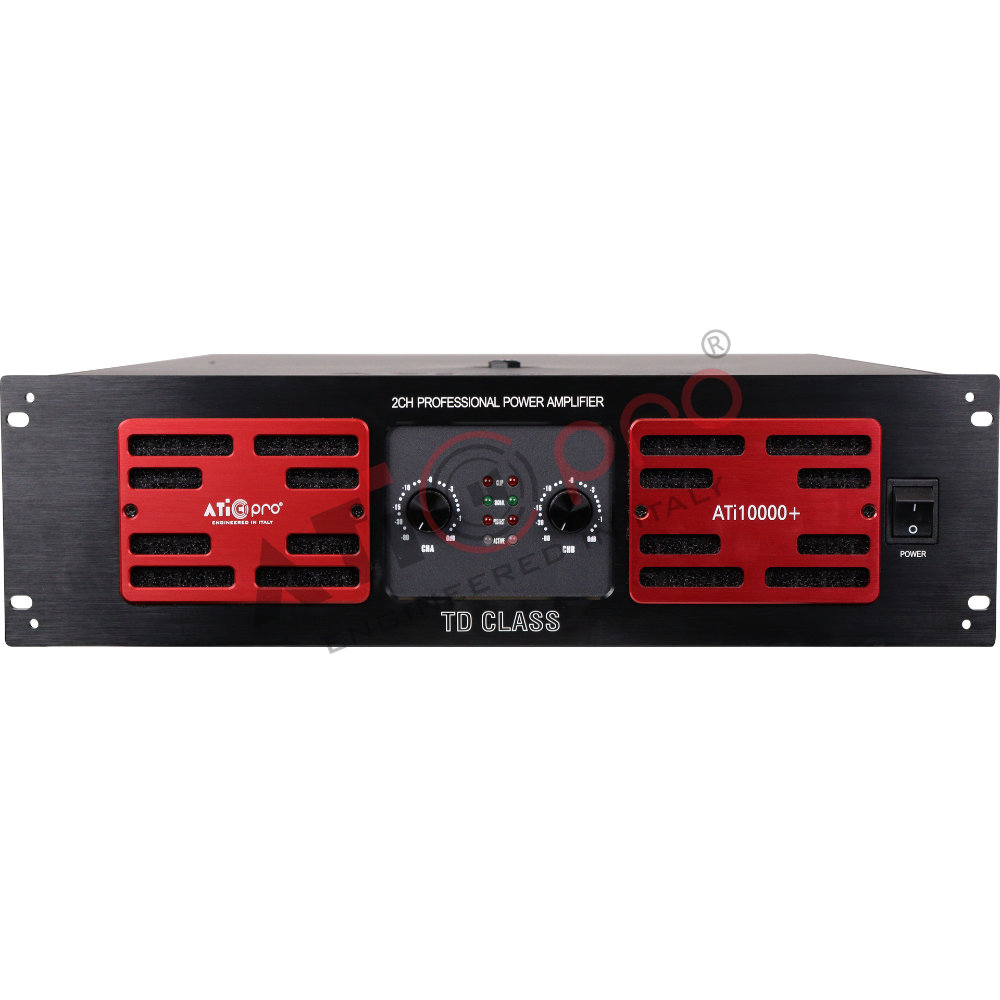

DJ Amplifier 10000 Watt Model ATI10000+



Specification of ATI 10000+

Model Name – ATI 10000+

8 Ω Stereo Power- 2×2500 W

4 Ω Stereo Power – 2×4500 W

2 Ω Stereo Power – 2×5000 W

8 Ω Bridge Mono Power – 8000 W

4 Ω Bridge Mono Power – 10000 W

Frequency response(+/-0.1 db) 20 HZ – 20 KHZ + -0.5 dB

THD + N (80HM 1KHZ IN 1/4 OUTOPUT) <0.08 %

Slew Rate – >10 SV/us

Signal Noise Ration (dB) >110dB

Dampin Factor (8 OHM 1K) – >2000

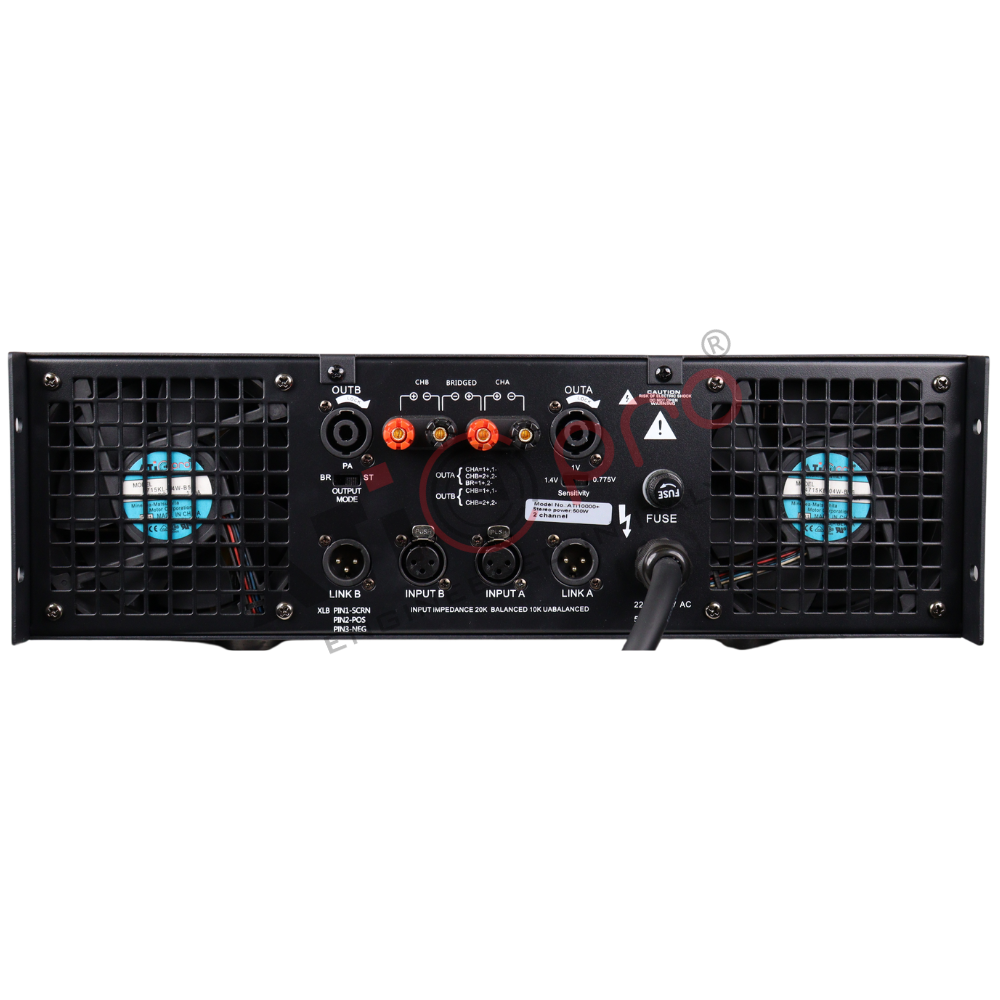

Input Connectors (per ch.) 3-pin XLR, electronically balanced

Link Connectors (per ch.) XLR, 3 pin male

Output Circuit – Class TD

Input Impedance : 20 KΩ BALANCED – 10 k Ω UNBALANCED

Output Socket – Speak on Connectors (NEUTRIK)

Protection – Protection of short circuit, open circuit , overheat, overload, DC, Super Sonic Frequency etc.

Power Requirement- 200-240v-50-60 Hz

Transportation Dimension (CM) – 69.5 X 54 X 24.5

Net Weight – 46 kGS

Gross Weight – 50 kGS



Share On
Technology
  • Audio Metal

Description



Specification of ATI 10000+

Model Name – ATI 10000+

8 Ω Stereo Power- 2×2500 W

4 Ω Stereo Power – 2×4500 W

2 Ω Stereo Power – 2×5000 W

8 Ω Bridge Mono Power – 8000 W

4 Ω Bridge Mono Power – 10000 W

Frequency response(+/-0.1 db) 20 HZ – 20 KHZ + -0.5 dB

THD + N (80HM 1KHZ IN 1/4 OUTOPUT) <0.08 %

Slew Rate – >10 SV/us

Signal Noise Ration (dB) >110dB

Dampin Factor (8 OHM 1K) – >2000

Input Connectors (per ch.) 3-pin XLR, electronically balanced

Link Connectors (per ch.) XLR, 3 pin male

Output Circuit – Class TD

Input Impedance : 20 KΩ BALANCED – 10 k Ω UNBALANCED

Output Socket – Speak on Connectors (NEUTRIK)

Protection – Protection of short circuit, open circuit , overheat, overload, DC, Super Sonic Frequency etc.

Power Requirement- 200-240v-50-60 Hz

Transportation Dimension (CM) – 69.5 X 54 X 24.5

Net Weight – 46 kGS

Gross Weight – 50 kGS
