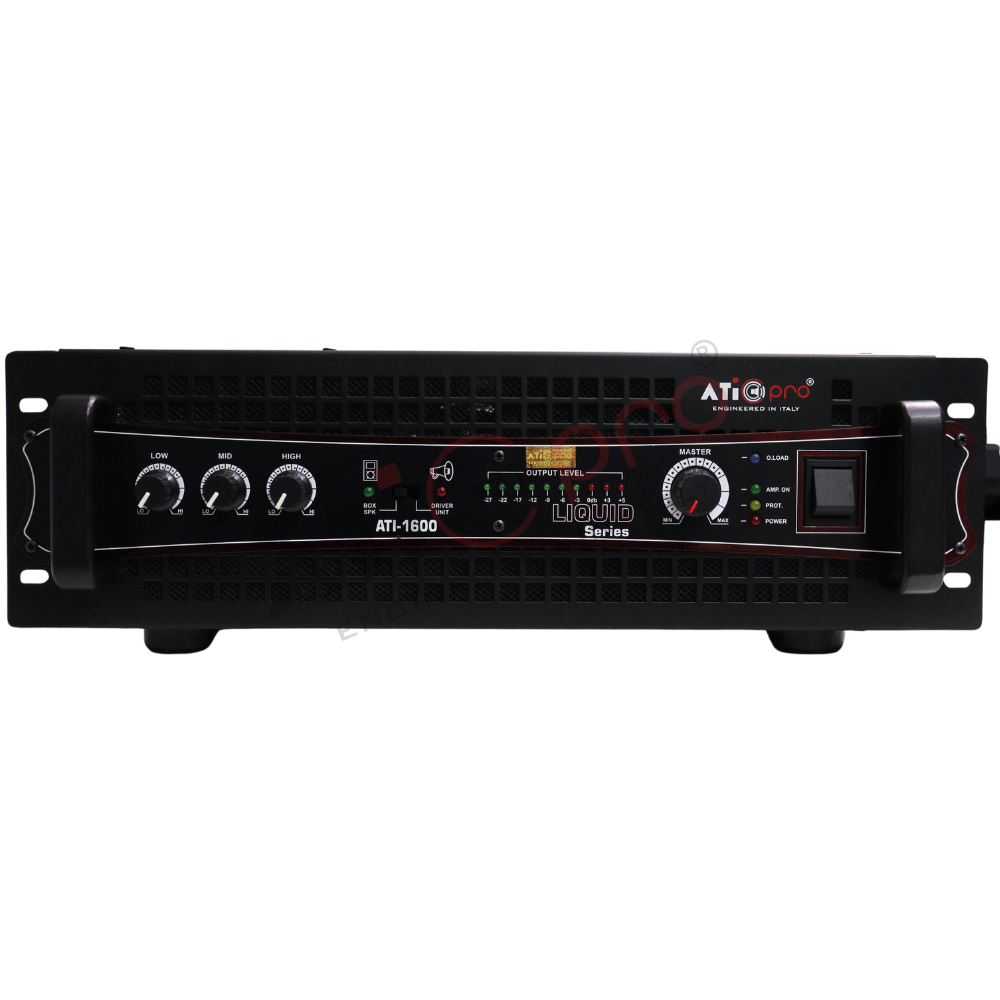

Booster Amplifier 1600 Watt Model ATI-1600

Description

PA Amplifier Model ATI-1600:

• Model: The ATI-1600 is a high-performance PA amplifier, designed to deliver powerful sound and reliable operation.
• Power Output: Offers a robust 1600 watts of power at both 2Ω and 4Ω impedance, ensuring consistent performance across various setups.
• Output Regulation: Features an output regulation of ≤2dB @1kHz, delivering stable and precise audio reproduction.

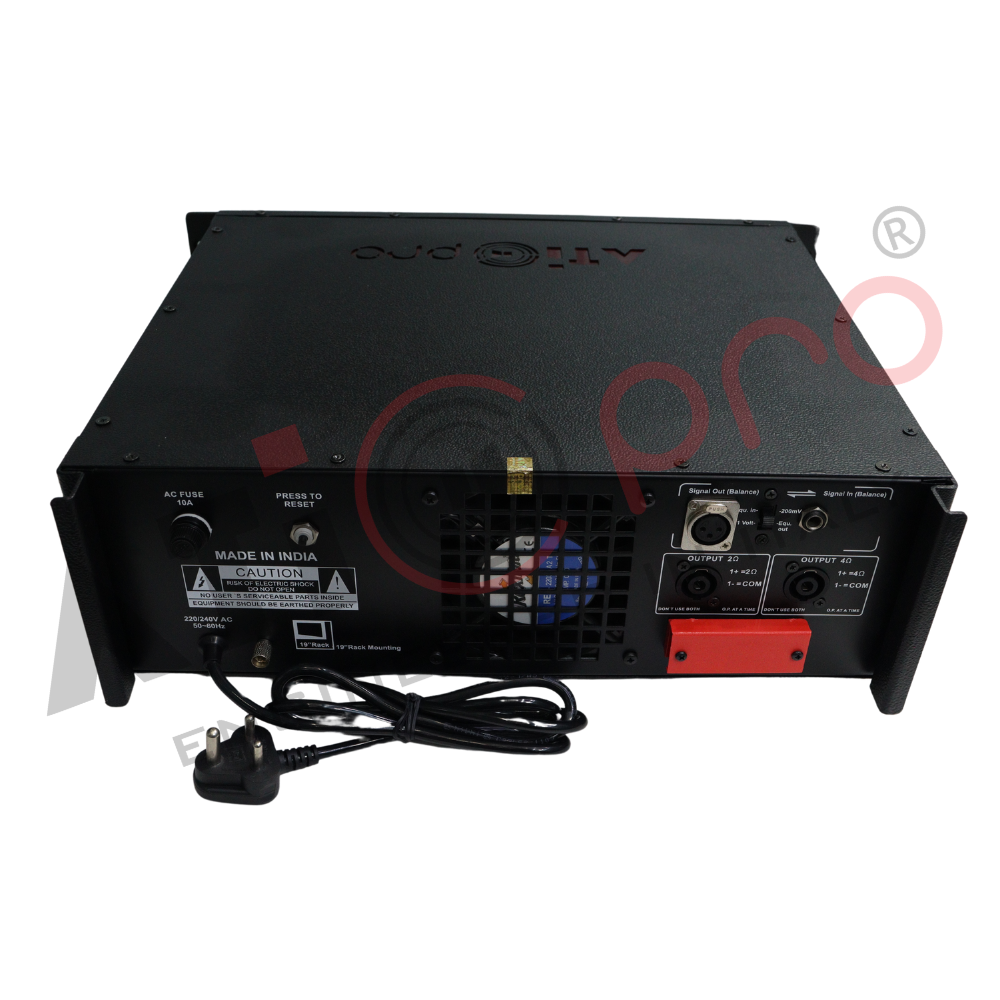

• Input Connector: Equipped with a female XLR mic socket, providing secure and professional-grade audio input connectivity.
• Input Channel: Supports input sensitivity levels of 200mV @100KΩ and 1V @10KΩ, accommodating a wide range of audio sources.
• Frequency Response: Offers a broad frequency range of 50-15kHz ±3dB, ensuring high-quality sound reproduction for diverse applications.
• Signal-to-Noise Ratio (S/N): Boasts an S/N ratio of 60dB, minimizing background noise for clear audio output.
• Input Common Mode Rejection Ratio (CMMR): Features an impressive >60dB CMMR, reducing interference from unwanted signals.
• Potentiometer Control: Provides precise sound adjustments with Treble ±10dB @10kHz and Bass/Mid ±10dB from 100Hz to 1kHz.
• Output Channel: Supports output levels of 200mV/100KΩ and 1V/10KΩ, offering flexibility in connecting to various equipment.
• Output Connections: Compatible with 2Ω and 4Ω direct connections, as well as 70V and 100V line limited connections for versatile audio setups.
• Horn/Speaker Selector: Includes a low pass/cut filter, allowing for tailored sound management when using horns or speakers.
• Power Supply: Operates on a standard AC 220-240V power supply, suitable for global usage.
• Cooling System: Features air-forced cooling, ensuring efficient heat dissipation for prolonged operational reliability.
• Dimensional Details: Designed for 19″ rack mounting with a height of 3U, making it easy to integrate into professional audio systems.
• Protection Mechanisms: Equipped with comprehensive protection systems, including fuse protection, thermal protection, circuit breaker, and relay protection, ensuring durability and safety during use.
