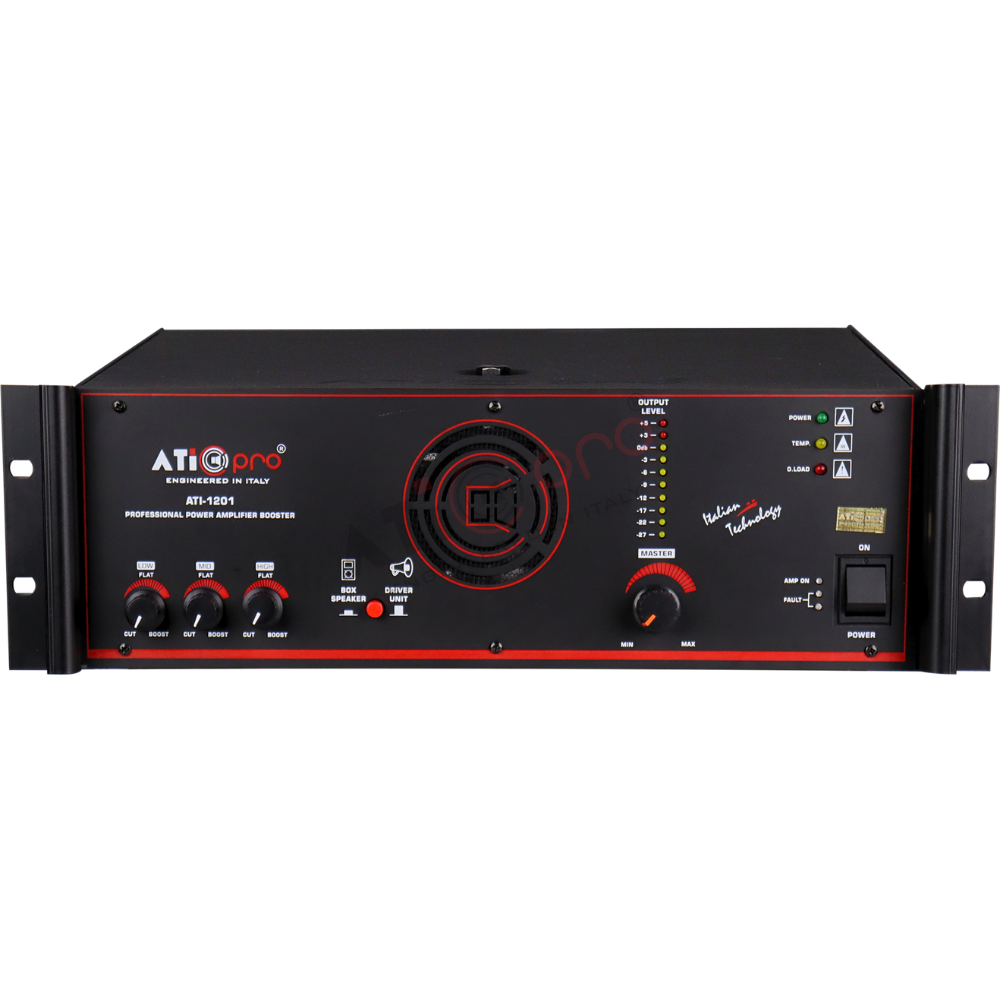

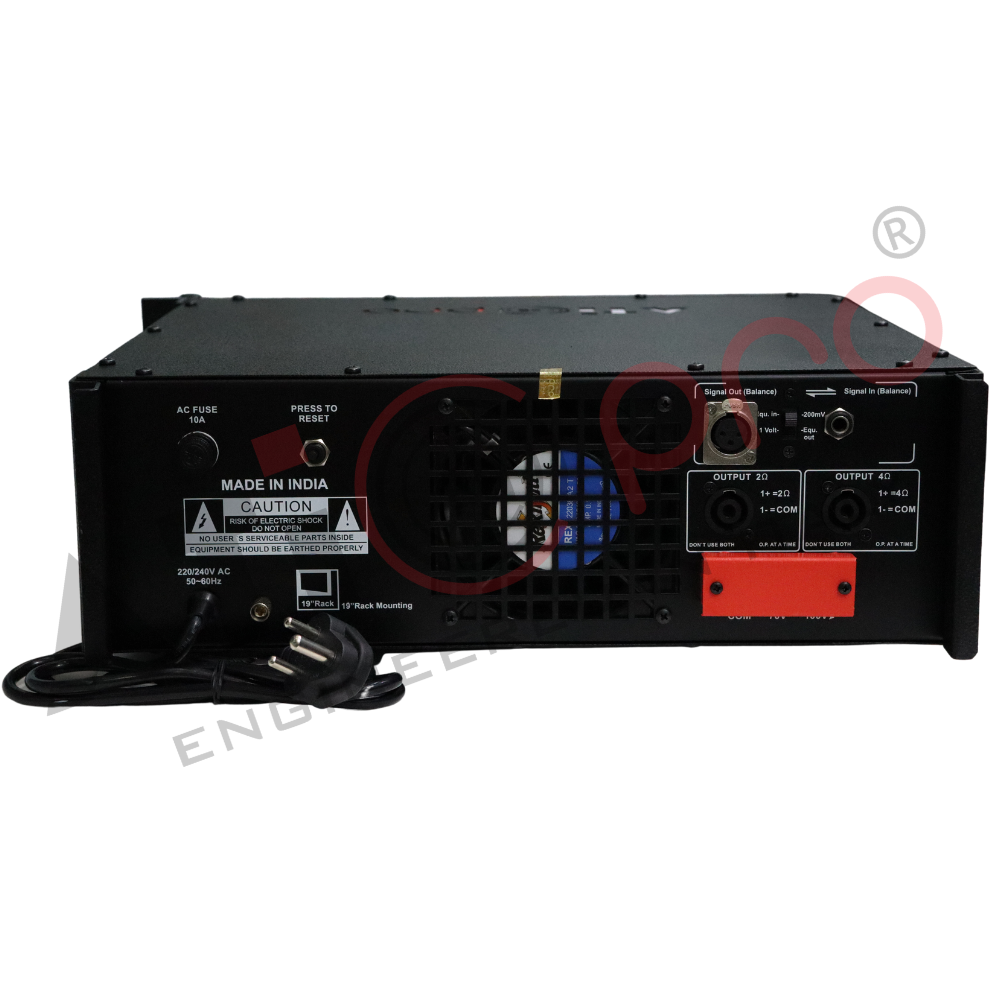

Booster Amplifier 1200 Watt Model ATI-1201

Description

ATI-1201 PA Amplifier:

• Model: ATI-1201
• Power Output: 1200W Max. – Delivers a powerful 1200W of output, ensuring strong and clear sound for large venues.
• Output Regulation: ≤ 2 dB, no load to full load at 1kHz – Ensures stable output with minimal fluctuation across various load conditions.
• Input Channel: 200mV @100KΩ, 1V @10KΩ – Flexible input channels with varying impedance, suitable for diverse audio setups.
• Frequency Response: 50-15,000 Hz ±3dB – Wide frequency range to ensure clear reproduction of low to high frequencies.
• Speaker Output: 2, 4Ω, 70,100V – Supports multiple speaker configurations for versatile audio setups.
• Power Supply: AC 220/240 Volt / 50-60Hz – Compatible with standard AC power supply for reliable performance.
• Power Consumption: 220 VA – Efficient power usage for cost-effective operation.
• Fuse Protection – Safeguards against electrical overloads and short circuits.
• Thermal Protection Circuit Breaker – Prevents overheating by automatically disconnecting the power if necessary.
• Relay Protection – Provides additional security to the amplifier and connected devices, ensuring safe operation.
