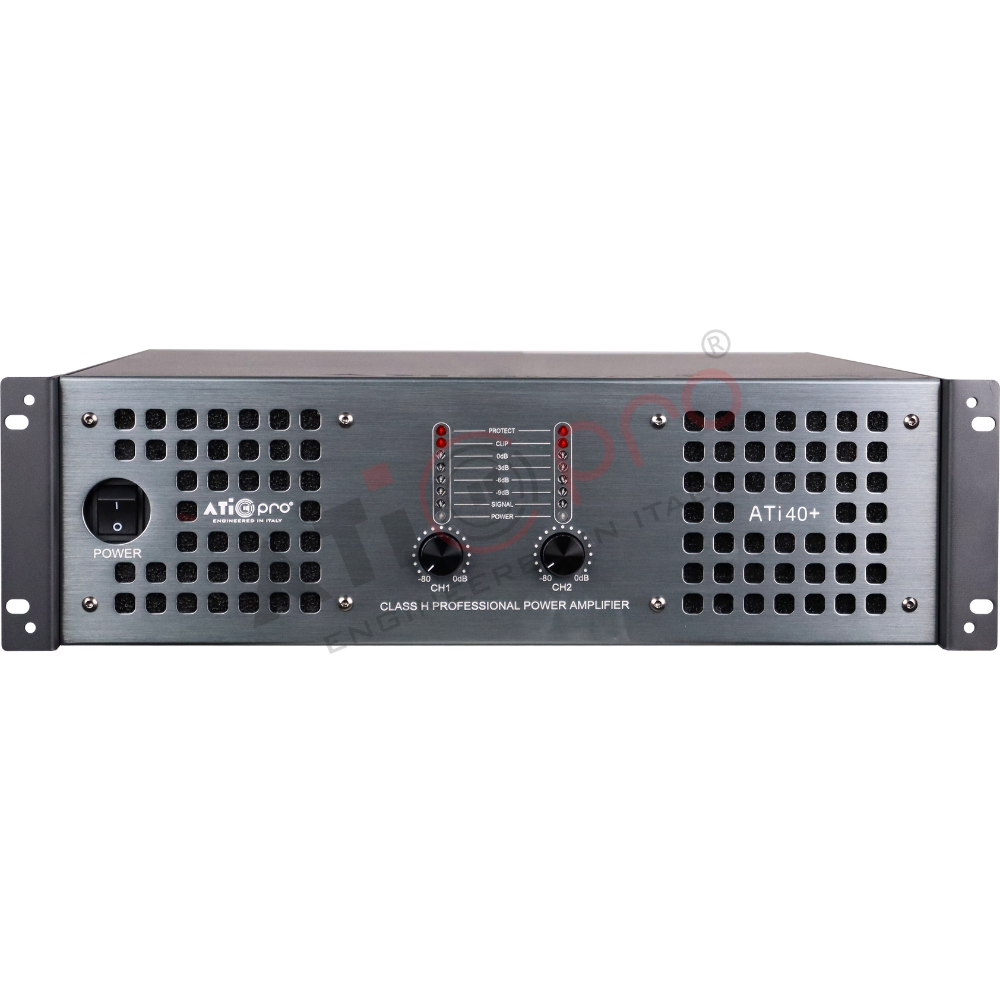

Dj Amplifier ATI 40+

8Ω stereo power 2x1800W
4Ω stereo power 2x2700W
8Ω Bridge Mono power 5400W
4Ω Bridge Mono power 8100W
Signal Noise Ration(dB) >110dB
THD+N(8OHM 1KHZ IN 1/4 OUTPUT) <0.08%
Damping Factor(8OHM 1K) >2000
Slew Rate >30V/us
Input sensitivity 0.775v/1.0v/1.4v
Output Circuit Class H
Frequency Response(+/-0.1db) 20Hz-20kHz +-0.5dB
Input connectors(per ch.) 3-pin XLR, electronically balanced
Link connectors(per ch.) XLR, 3 pin male
Input Impedance 20kΩBALANCED-10kΩUNBALABCED
Output Connectors NEUTRIK
Amplifier Protection Protection of short circuit, open circuit, overheat, overload, DC, super sonic frequency etc.
Transport Dimension(CM) 69.5X54X24.5cm
Net Weight 42gs
Gross Weight 46gs



Share On

Description

  • Stereo Power Output (8Ω): Delivers 2x1800W for high-performance audio delivery.
  • Stereo Power Output (4Ω): Provides 2x2700W for superior amplification in demanding environments.
  • Bridge Mono Power Output (8Ω): Capable of 5400W to drive powerful sound systems with ease.
  • Bridge Mono Power Output (4Ω): Pushes 8100W for exceptional sound clarity and power.
  • Signal to Noise Ratio (SNR): Exceeds >110dB, ensuring pristine audio quality without interference.
  • Total Harmonic Distortion + Noise (THD+N): Maintains <0.08%, delivering accurate and clear sound reproduction.
  • Damping Factor: Exceeds >2000 at 8Ω and 1kHz, providing tight control over speaker movement and enhanced bass response.
  • Slew Rate: Exceeds >30V/us, offering fast response times and precise audio fidelity.
  • Input Sensitivity: Flexible input options with 0.775V, 1.0V, or 1.4V sensitivity for versatile connectivity.
  • Output Circuit: Utilizes Class H technology for efficient energy use and consistent performance.
  • Frequency Response: Covers 20Hz to 20kHz (+-0.5dB), ensuring full-range sound reproduction with exceptional detail.
  • Input Connectors: Equipped with 3-pin XLR, electronically balanced for stable and secure signal transmission.
  • Link Connectors: Features XLR, 3-pin male connectors for easy signal linking between devices.
  • Input Impedance: Offers 20kΩ balanced and 10kΩ unbalanced impedance for flexible audio system integration.
  • Output Connectors: Utilizes NEUTRIK connectors, ensuring reliable and durable output connections.
  • Amplifier Protection: Protects short circuit, open circuit, overheat, overload, DC, and super-sonic frequency, ensuring longevity and safety.
  • Transport Dimensions: Measures 69.5x54x24.5 cm for efficient storage and transport.
  • Net Weight: Weighs 42kg, offering robust construction for professional applications.
  • Gross Weight: Weighs 46kg with packaging, ensuring secure shipping and handling.
