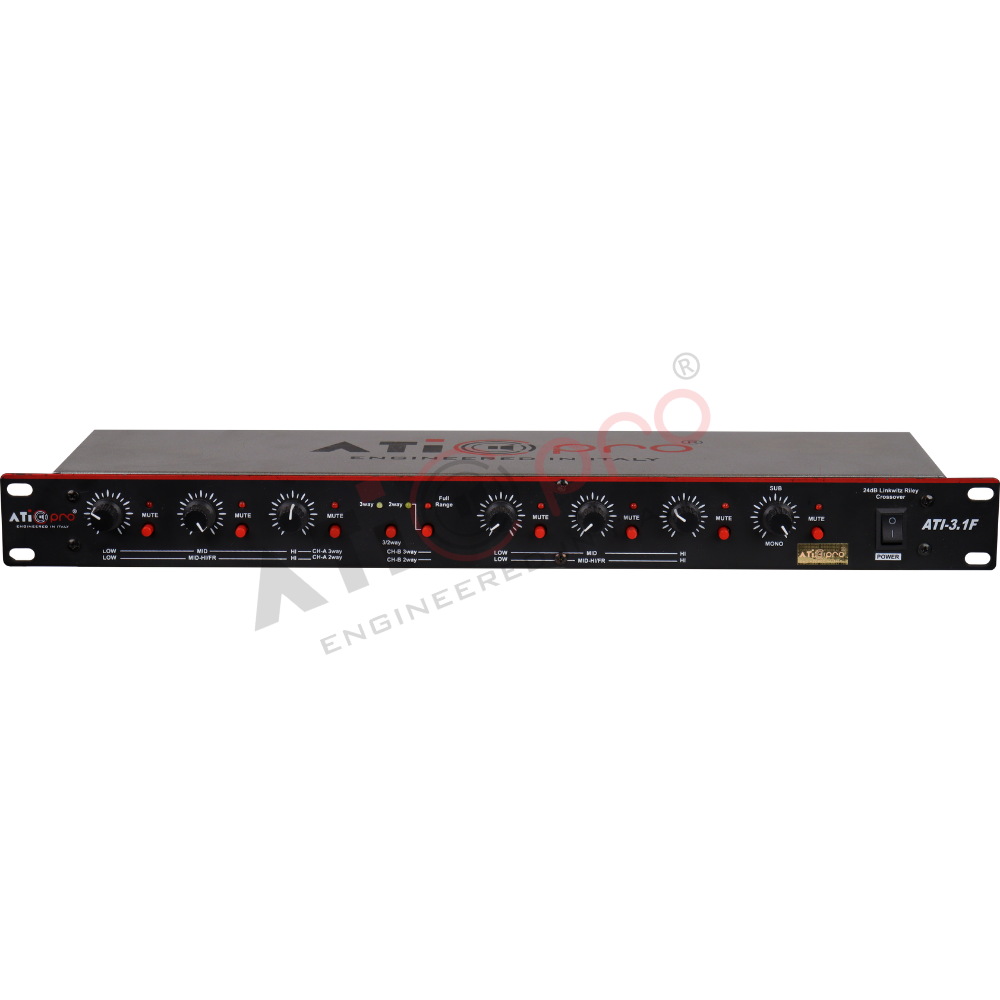

ATIPRO 3.1F Bass Crossover

Description

• The ATI-3.1 F Bass Crossover delivers a powerful 5000 watts of output for enhanced performance in professional audio setups.
• It features 24 dB/octave Linkwitz-Riley state variable alignment filters for precise and smooth signal processing.
• A 45 Hz low-frequency bass equalizer allows for fine-tuning of low-end sound for optimal bass reproduction.
• Each band includes a gain control and a mute switch, offering full control over the audio signals.
• The ATI-3.1 F offers flexibility with Sub and Full Range Outputs (Mode 2) for a wider range of audio setups.
• The input has a balanced impedance of 30K Ohms, ensuring compatibility with professional audio equipment.
• The output features a balanced impedance of 100 Ohms, providing stable signal transfer.
• Control range allows for OFF at CCW, Unity at 12 o’clock, and up to +12 dB (4 times) at full CW.
• Crossover frequencies are set at 160 Hz (Low to Mid), 1600 Hz (Mid to High), and 80 Hz (Subwoofer mode).
• The frequency response spans from 30 Hz to 30 kHz, with a -3 dB point, ensuring full-range audio clarity.
• Total harmonic distortion (THD) is an exceptionally low 0.002%, preserving audio fidelity.
• Power requirements range from 180 to 240 VAC, 50/60 Hz, consuming just 3 VA for efficient operation.
